Double Fixed Displacement

2520V

The Northman 2520V Series double pump is a fixed displacement, hydraulic balanced vane pump. This high performance intravane pump for industrial applications features high pressure capability with 12 vanes for low noise. The available flow ratings for the 2520V series are from 10 GPM to 21 GPM at 1200 RPM on the shaft end and from 2 to 14 GPM at 1200 RPM on the cover end. Viton seals are standard. Standard rotation is right-hand (clockwise), with left-hand rotation (counterclockwise) available ("L" option). The flange mounting is the SAE "B" two-bolt standard. The outlet port may be oriented in any one of four positions.







  Quick Links
Model Code
Performance Curves
Dimensions



Symbol

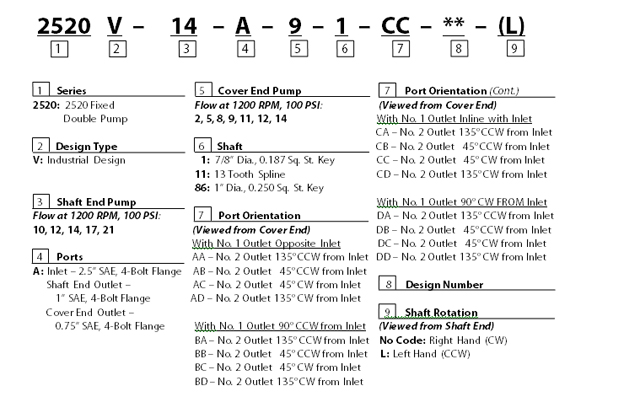

Model Code - top

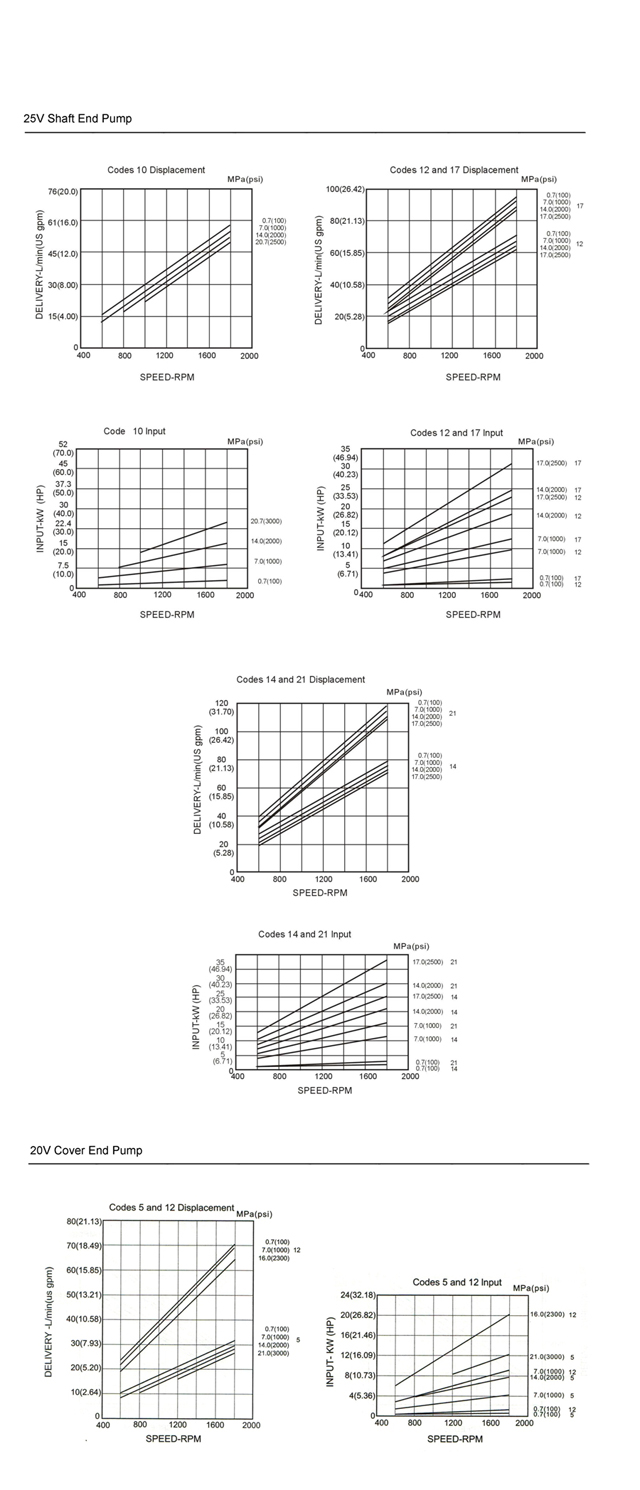

Performance Curves - top

2520V Double Pump

SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.




Specifications - top

Shaft End Pump
Flow Code
GPM @ 1200 RPM & 100 PSI
Displacement
in³/r (cm³/r)
Max. Pressure
PSI (BAR)
P/N Example
2520V-17-A-9-1-CC-20
("17" = Shaft End Pump)

10

1.98 (32.5)

2500 (172)

12

2.44 (40)

14

2.62 (43)

17

3.36 (55)

21

4.09 (67)
Cover End Pump

Flow Code

GPM @ 1200 RPM & 100 PSI

Displacement

in³/r (cm³/r)

Max. Pressure

PSI (BAR)
P/N Example
2520V-17-A-9-1-CC-20
("9" = Cover End Pump)

2

0.46 (7.5)

2000 (138)

5

1.04 (17)

3000 (207)

8

1.67 (27)

9

1.85 (30)

11

2.22 (36)

12

2.47 (40)

2300 (159)

14

2.78 (45)

2000 (138)

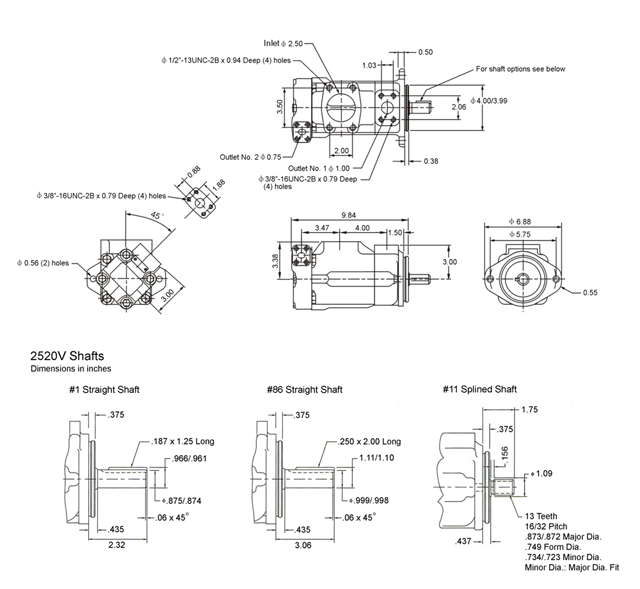

Dimensions - top

2520V Double Pump
Dimensions in inches
