Double Fixed Displacement 3520V
|
||
 |
 |
 |
 |
|
 |
||
 |
 |
 |
 |
|
|
Quick Links
Model Code Performance Curves Dimensions |
||
 |
 |
|
|
||||||||||||||||||
|

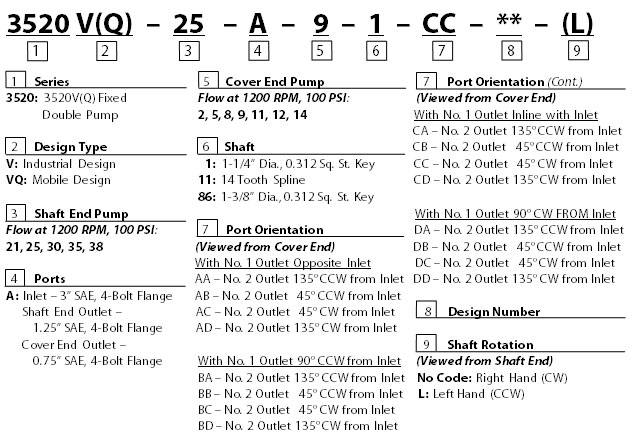

 Model Code - top  |
Performance Curves -
top

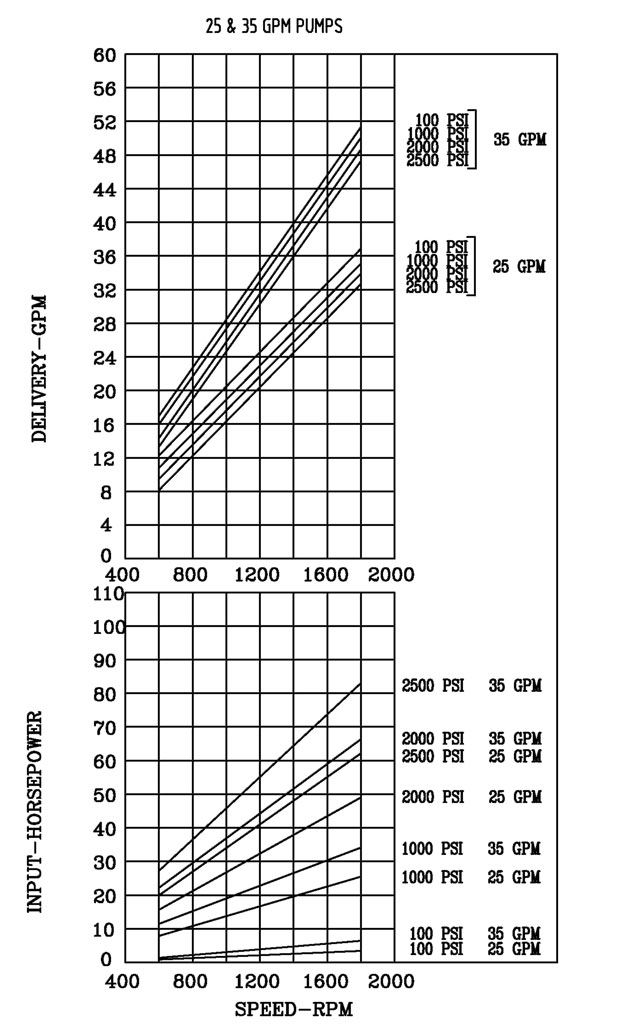

3520V Double Pump (Ring Size -12 & 17 GPM)
SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.
Performance Curves -
top

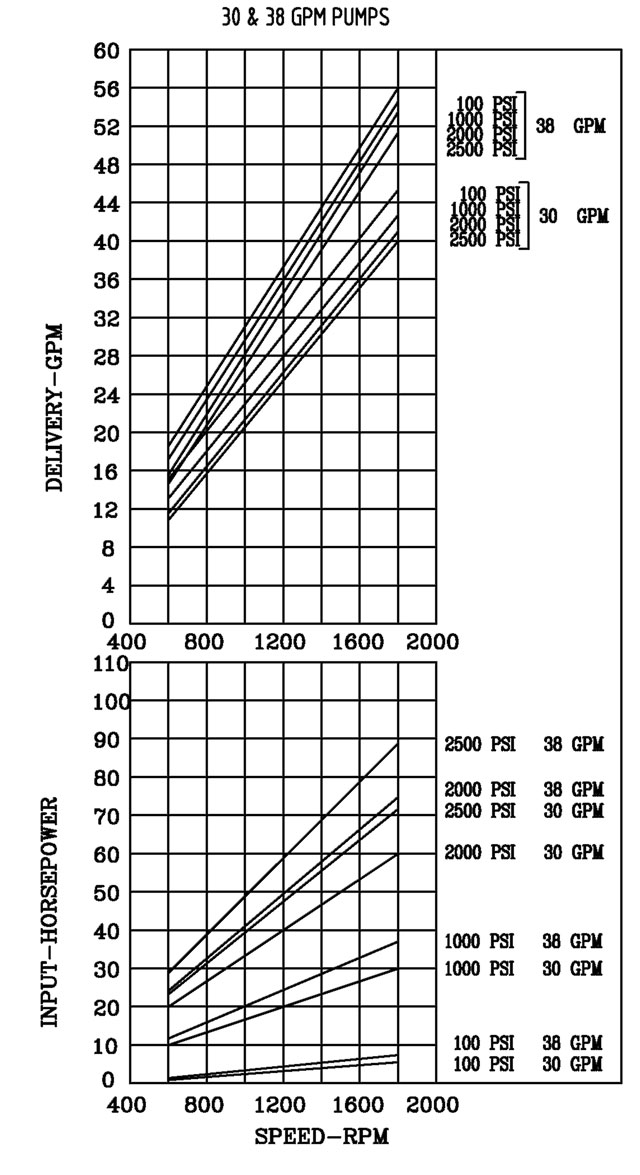

3520V Double Pump (Ring Size -12 & 17 GPM)
SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.
Performance Curves -
top

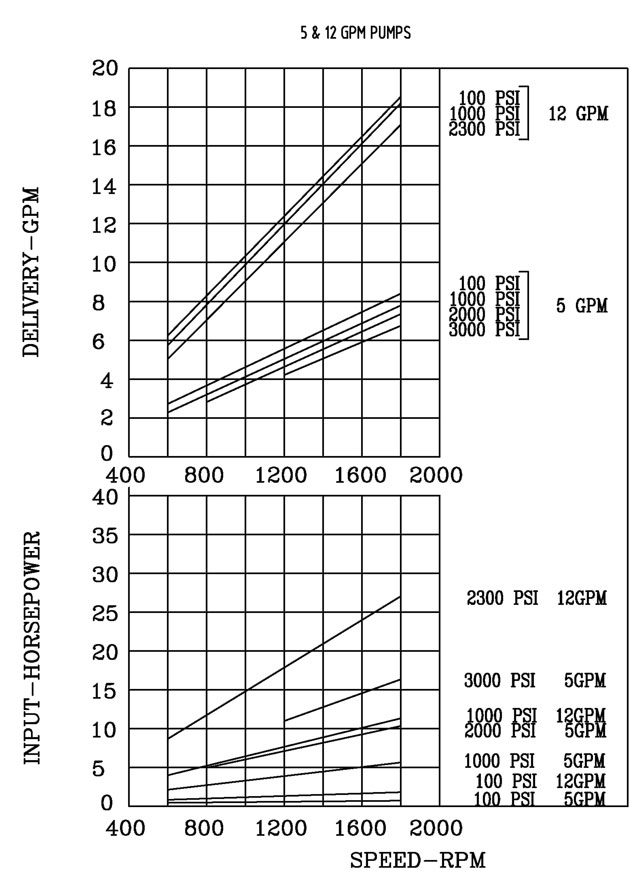

3520V Double Pump (Ring Size -12 & 17 GPM)
SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.
Performance Curves -
top
3520V Double Pump (Ring Size -12 & 17 GPM)
SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.
Dimensions -
top

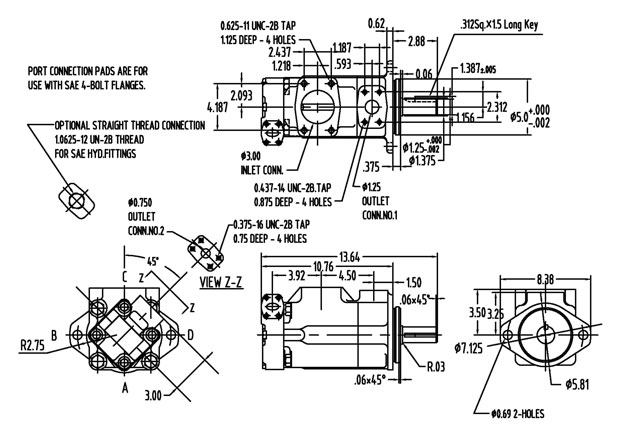

3520V Double Pump
Dimensions in inches

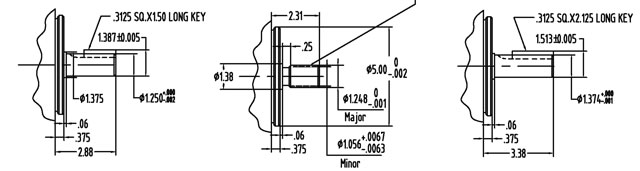

Code 1 3/16 Straight Key Code 11 14T 12/24 Spline Code 86 HD Straight Key
