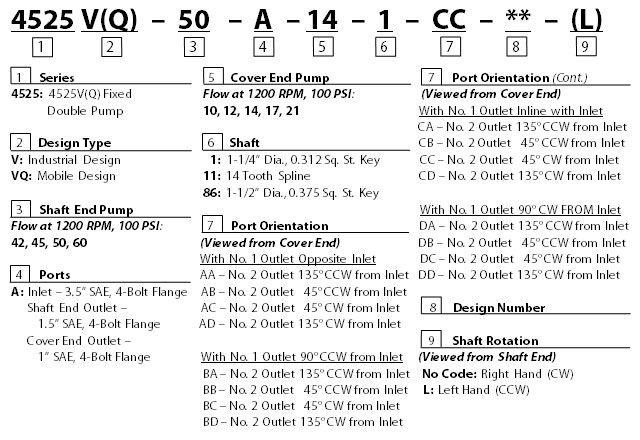

 Model Code - top  |
Performance Curves -
top

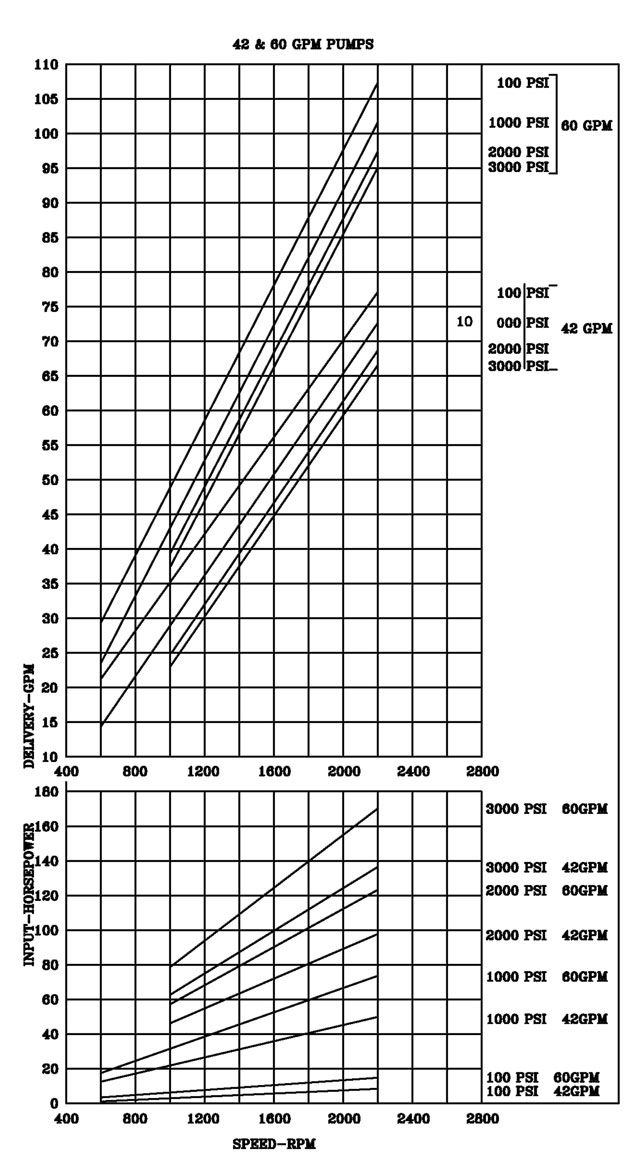

4525VQ Double Pump (Ring Size -42 & 60 GPM)
SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.
Performance Curves -
top

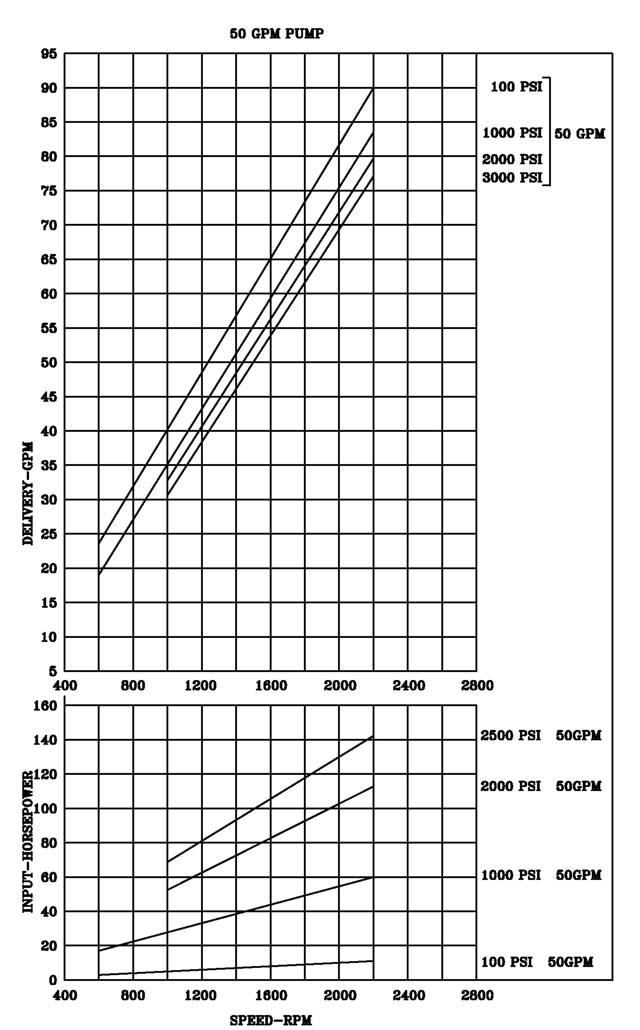

4525VQ Double Pump (Ring Size -50 GPM)
SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.
Performance Curves -
top

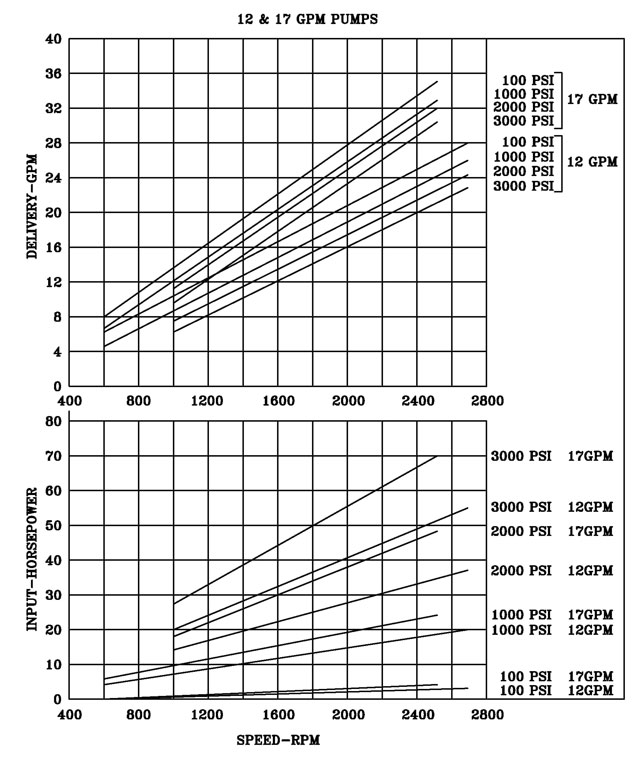

4525VQ Double Pump (Ring Size -12 & 17 GPM)
SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.
Performance Curves -
top

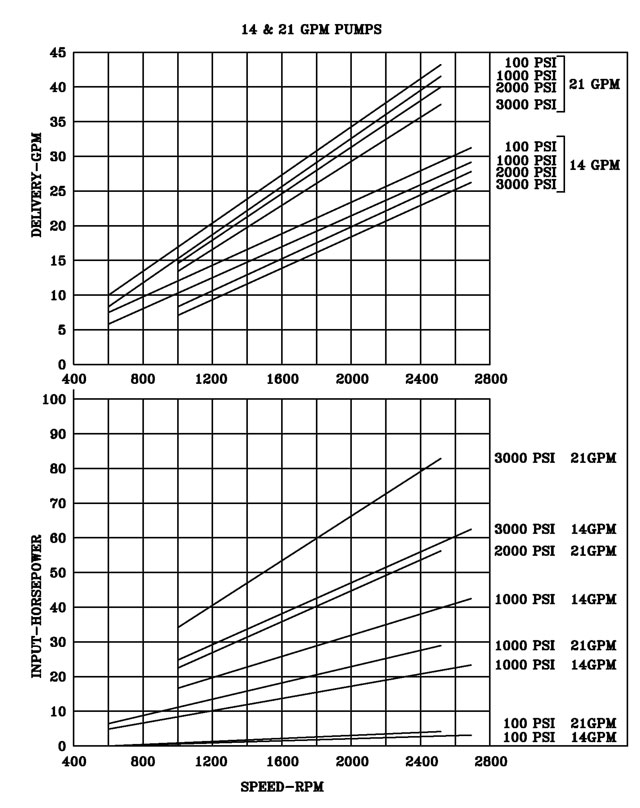

4525VQ Double Pump (Ring Size -14 & 21 GPM)
SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.

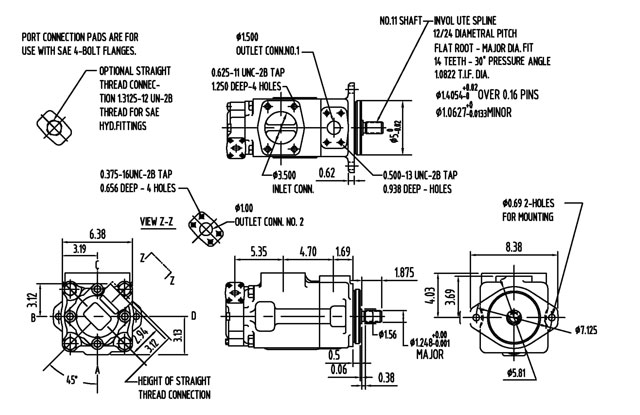

Dimensions -
top
4525VQ Double Pump
Dimensions in inches

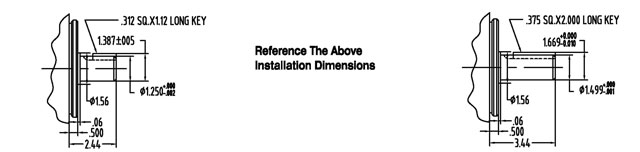

Code 1 3/16 Straight Key Code 11 14T 12/24 Spline Code 86 HD Straight Key
