Double Fixed Displacement

4535VQ

The Northman 4535VQ Series double pump is a fixed displacement, hydraulic balanced vane pump. This high performance intravane pump features the 10 vane design for the high pressure and speed requirements of mobile applications. The available flow ratings for the 4535VQ series are from 42 GPM to 60 GPM at 1200 RPM on the shaft end and from 21 to 38 GPM at 1200 RPM on the cover end. Viton seals are standard. Standard rotation is right-hand (clockwise), with left-hand rotation (counterclockwise) available ("L" option). The flange mounting is the SAE "C" two-bolt standard. The outlet port may be oriented in any one of four positions.







  Quick Links

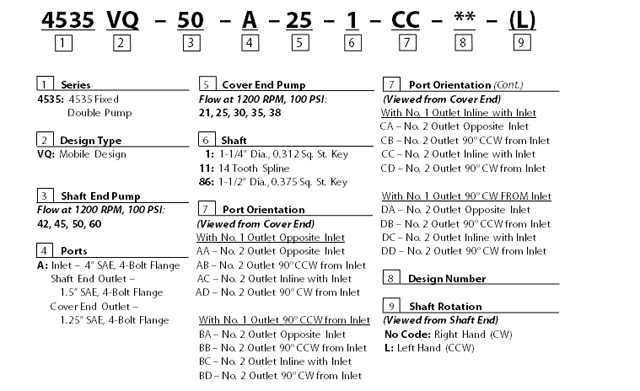

Model Code
Performance Curves
Dimensions



Symbol


Model Code - top







Performance Curves - top

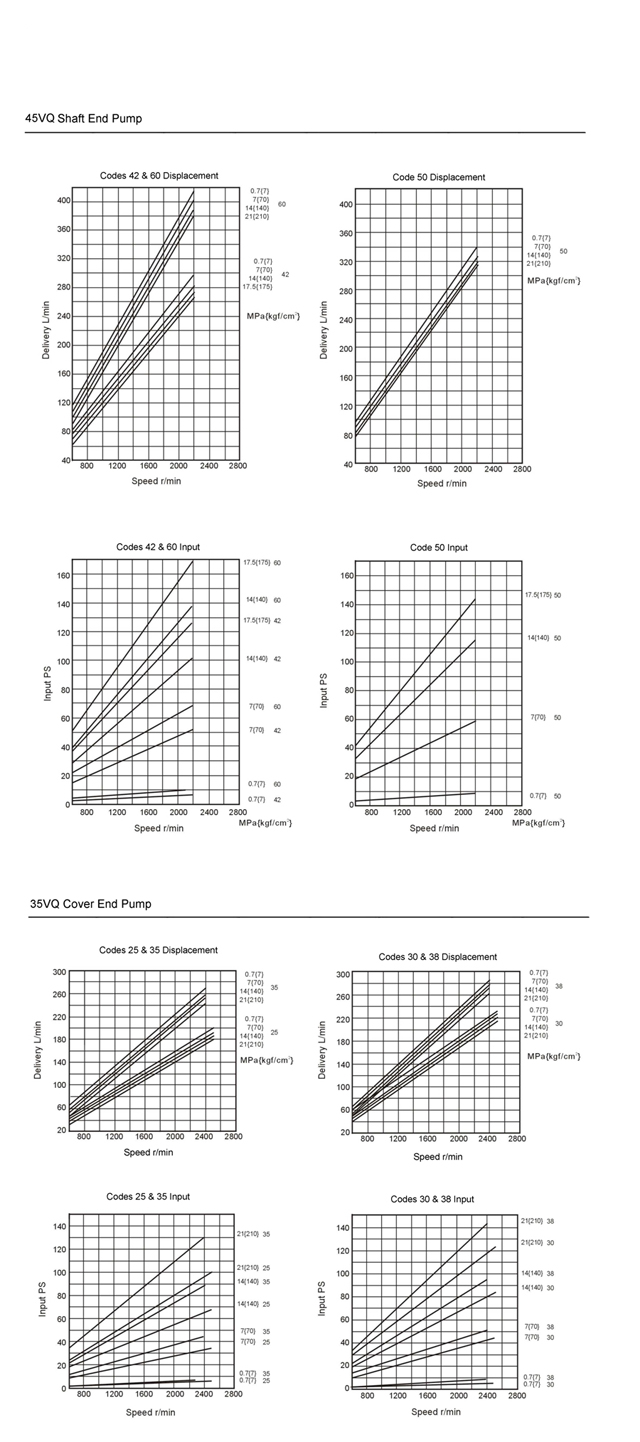

4535VQ Double Pump (Ring Size -42 & 60 GPM)

SAE 10W Fluid at 120°F.
Pump Inlet at 0" hg.


Specifications - top

Shaft End Pump
Flow Code
GPM @ 1200 RPM & 100 PSI
Displacement
in³/r (cm³/r)
Max. Speed
RPM
Max. Pressure
PSI (BAR)
P/N Example
4535VQ-50-A-30-1-CC-20
("50" = Shaft End Pump)

42

8.18 (134)

2400

2500 (172)

45

8.97 (147)

2200

50

9.52 (156)

60

11.53 (189)

Cover End Pump
Flow Code
GPM @ 1200 RPM & 100 PSI
Displacement
in³/r (cm³/r)
Max. Speed
RPM
Max. Pressure
PSI (BAR)
P/N Example
4535VQ-50-A-30-1-CC-20
("30" = Cover End Pump)

21

3.90 (64)

2500

3000 (210)

25

4.83 (79.2)

30

5.80 (95)

35

6.65 (109)

2400

38

7.20 (118)


Dimensions - top

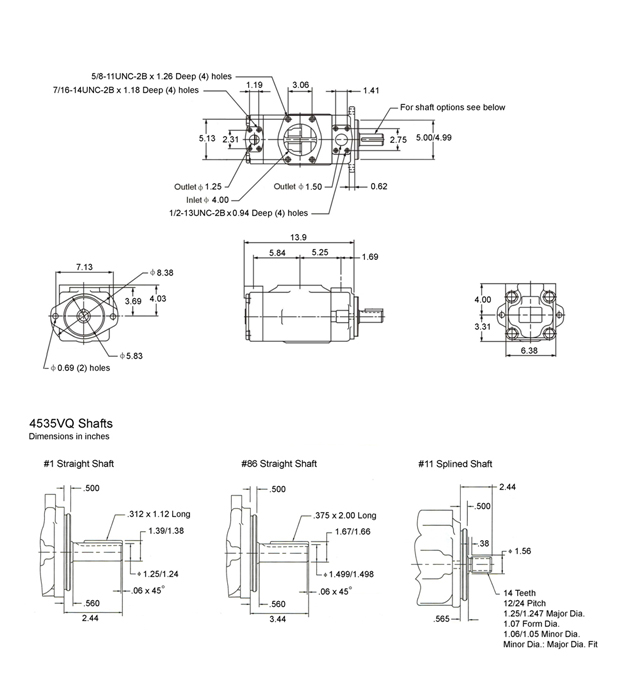

4535VQ Double Pump
Dimensions in inches
