Single Fixed Displacement

45V


The Northman 45V Series pump is a fixed displacement, hydraulic balanced vane pump. This high performance intravane pump for industrial applications features high pressure capability with 12 vanes for low noise. The available flow ratings for the 45V series are from 42 GPM to 60 GPM at 1200 RPM. Viton seals are standard. Standard rotation is right-hand (clockwise), with left-hand rotation (counterclockwise) available ("L" option). The flange mounting is the SAE "C" two-bolt standard. The outlet port may be oriented in any one of four positions.







  Quick Links
Model Code
Performance Curves
Dimensions




Symbol

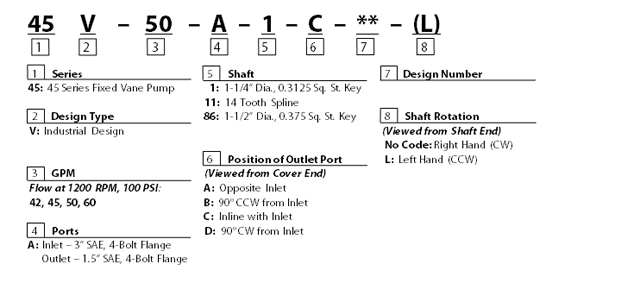

Model Code -
top

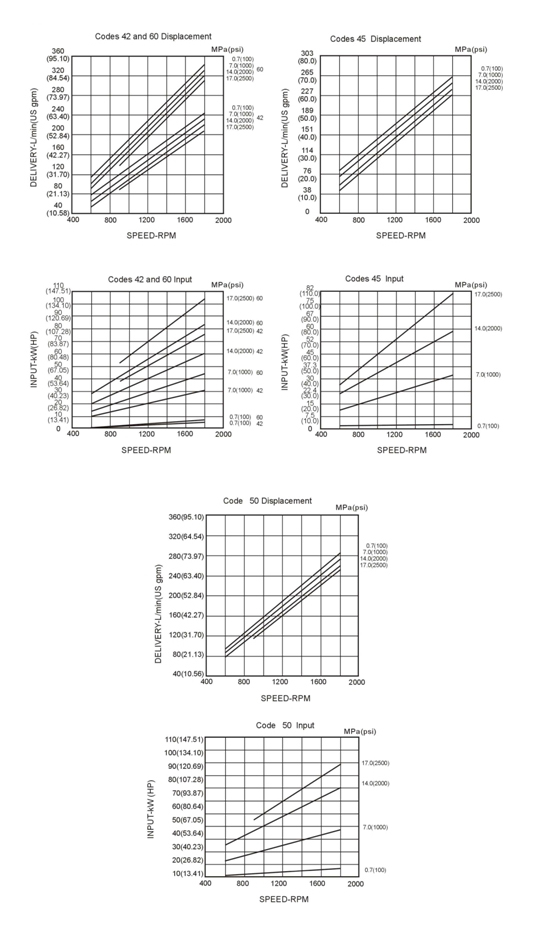

Performance Curves - top

45V Single Pump

SAE 10W Fluid at 120°F.
Pump Inlet at 0° hg.



Specifications - top

Based on Petroleum Oil: 120°F (49°C), Viscosity 150 SUS at 100°F (38°C), 0 Inlet PSI

Model
Flow Code
GPM @ 1200 RPM
& 100 PSI
Displacement
in³/r (cm³/r)
Max. Speed
RPM
Max. Pressure
PSI (BAR)
Weight
Lbs (Kg)

45V

42

8.42 (138)

1800

2500 (172)

75.2 (34.1)

45

8.66 (142)

50

9.89 (162)

60

11.78 (193)

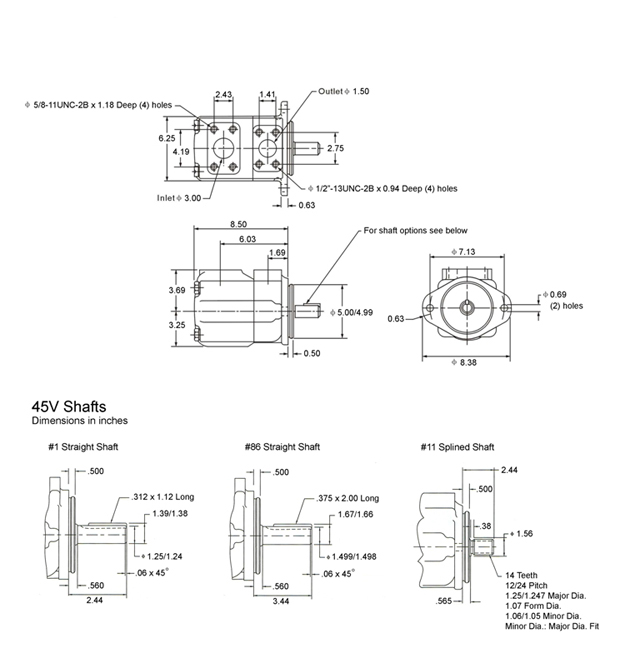

Dimensions - top

45V Single Pump
Dimensions in inches
