INLINE  CHECK VALVE


This in-line check valve is designed to allow free flow of oil in a hydraulic system in one direction and block flow in the reverse direction. Port sizes range from 3/8” NPT to 2” NPT.





















  Quick Links

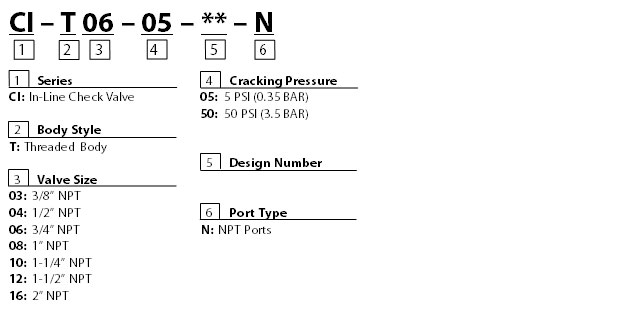

Model Code
Specifications
Dimensions



Model Code - top




Symbols - top





SPECIFICATIONS - top


MODEL RATE FLOW MAX. OPERATED CRACKING PRESSURE
    PRESSURE
  LPM(GPM) BAR (PSI) BAR (PSI)
CI-T03 30(7.9)
CI-T04 65(17.1)   05: 0.35(5)
CI-T06 115(30.4) 207(3000) 50: 3.5(50)
CI-T08 165(43.6)
CI-T10 210(55.5)

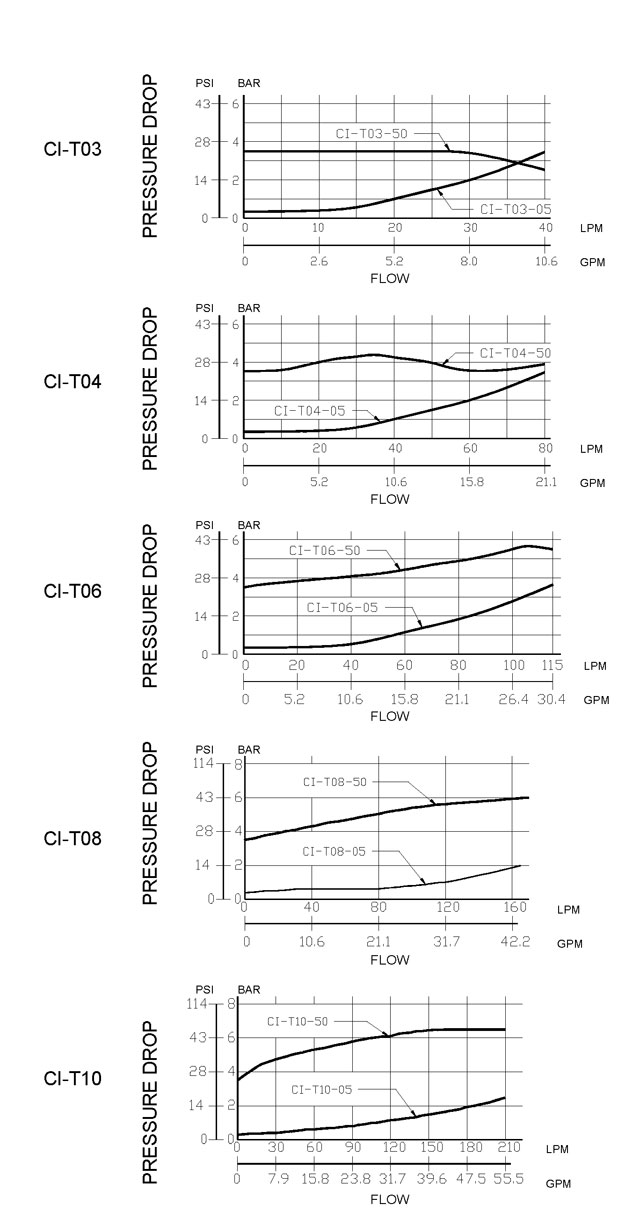

PERFORMANCE CURVES - top

TEST FLUID VISCOSITY : 35 cSt (175 SSU) TEST TEMPERATURE: 50C(122F)





Dimensions - top UNIT: mm(inch)

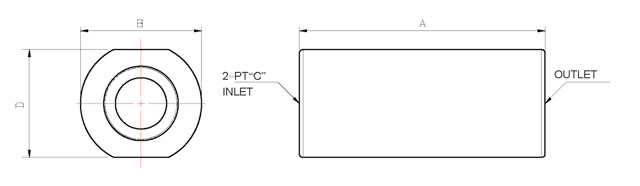

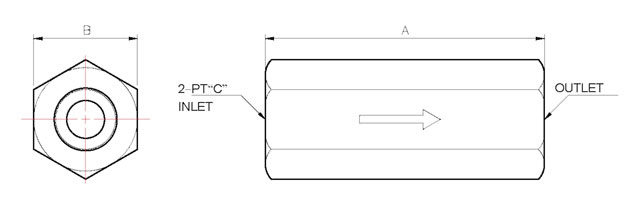

CI-T03/04/06/08/16

CI-T10


MODEL A B C D WEIGHT
          KGS(LBS)
CI-T03 70 (2.76) 26 (1.02) 3/8" - - 0.20 (0.44)
CI-T04 82 (3.23) 29 (1.14) 1/2" - - 0.40 (0.88)
CI-T06 91.5 (3.60) 35 (1.38) 3/4" - - 0.70 (1.54)
CI-T08 112 (4.41) 51 (2.01) 1" - - 1.00 (2.20)
CI-T10 132 (5.20) 65 (2.56) 1-1/4" 58 (2.28) 2.10 (4.62)
CI-T16 159 (6.25) 80 (3.13) 2" - - 3.63 (8.00)
