RIGHT ANGLE  CHECK VALVE


This subplate mounted check valve is designed to allow free flow of oil in a hydraulic system in one direction and block flow in the reverse direction. It mounts on the CVM-** series subplate, also shown on this page.

























  Quick Links
Model Code
Specifications
Dimensions



Model Code - top




Symbols - top






SPECIFICATIONS - top


MODEL RATE FLOW MAX. OPERATED PRESSURE CRACKING PRESSURE
  LPM(GPM) BAR (PSI) BAR (PSI)
CV-G03 40(10.5)   05: 0.35(5)
CV-G06 125(33.0) 245 (3550) 50: 3.5(50)
CV-G10 250(66.0)


PERFORMANCE CURVES - top

TEST FLUID VISCOSITY : 35 cSt (175 SSU) TEST TEMPERATURE: 50C(122F)

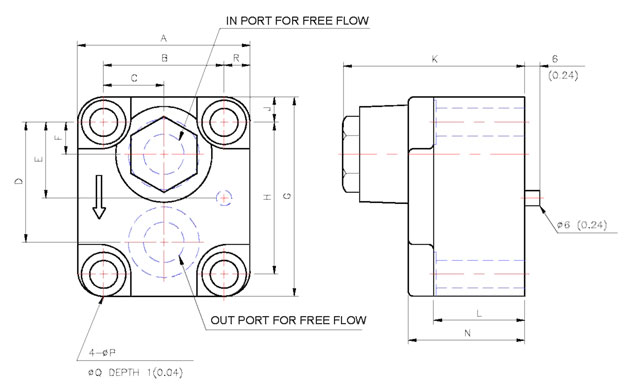

Dimensions - top UNIT: mm(inch)

CV-G03/06/10-**-10
MODEL A B C D E F G H J
CV-G03 68 (2.68) 47.6 (1.87) 23.8 (0.94) 47.6 (1.87) 30.1 (1.19) 12.7 (0.50) 80 (3.15) 60.3 (2.27) 10 (0.39)
CV-G06 101 (3.98) 65.2 (2.56) 32.6 (1 28) 68.2 (2.69) 40.5 (1.59) 22.2 (0.87) 114 (4.49) 80.9 (3.19) 16.5 (0.65)
CV-G10 130 (5.12) 92.1 (3.63) 46.1 (1.81) 71.4 (2.81) 46.0 (1.81) 20.6 (0.81) 130 (5.12) 92.1 (3.63) 19 (0.75)

MODEL K L N P Q BOLT WEIGHT
            KGS LBS
CV-G03 70 (2.76) 36 (1.42) 46 (1.81) 11 (0.43) 17.5 (0.69) M10x50x4PCS (3/8"x2") x4PCS 1.7 3.7
CV-G06 81 (3.19) 38 (1.49) 54 (2.12) 17.5 (0.69) 26 (1.02) M16x55x4PCS (5/8"x2-1/2") x4PCS 4.1 9.0
CV-G10 100 (3.94) 50 (1.97) 67 (2.64) 21.5 (0.85) 30 (1.18) M20x75x4PCS (3/4"x3") x4PCS 6.6 14.5

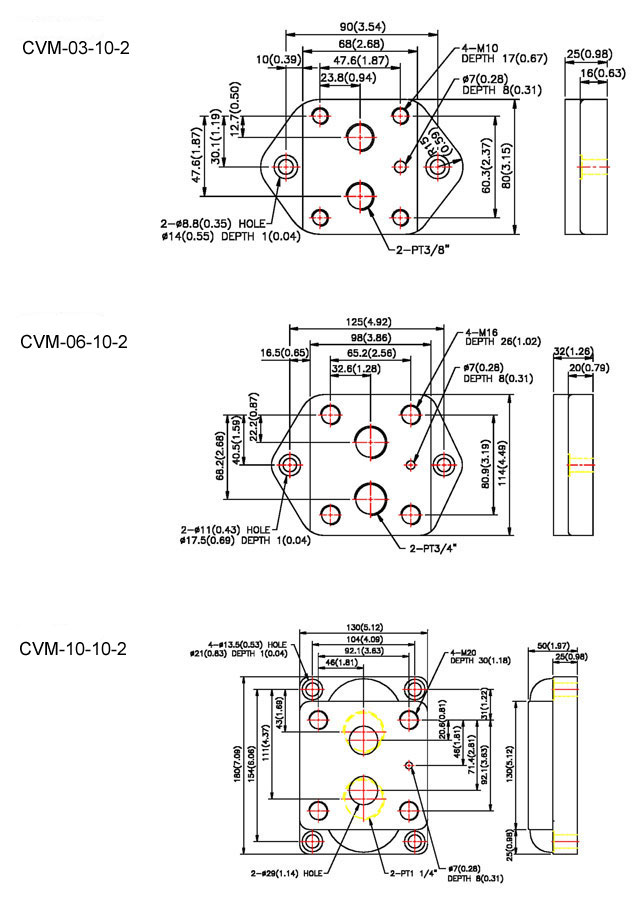

MODEL R SUBPLATE
CV-G03 10.2 (0.405) CVM-03-10-2
CV-G06 16.45 (0.65) CVM-06-10-2
CV-G10 18.95 (0.745) CVM-10-10-2



Dimensions - top UNIT: mm(inch)

CV-G03/G06-**-20
G03: ISO 5781-AG-06-2-A
G06: ISO 5781-AH-08-2-A



MODEL A B C D E F G H
CV-G03 90 (3.54) 66.7 (2.63) 11.7 (0.46) 72 (2.83) 42.9 (1.69) 17.5 (0.69) 72.5 (2.85) 31 (1.22)
CV-G06 102 (4.02) 79.4 (3.13) 11.3 (0.44) 93 (3.66) 60.3 (2.37) 21.4 (0.84) 84 (3.31) 36 (1.42)

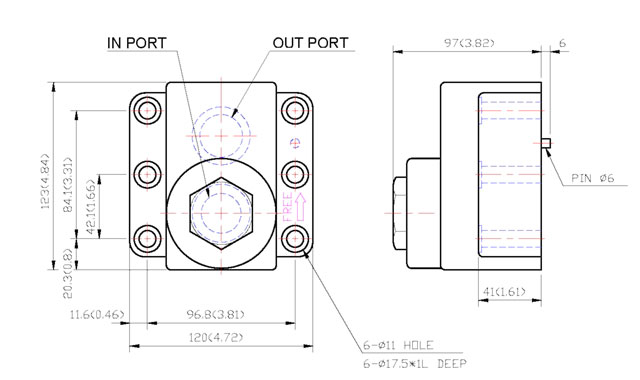

CV-G10-**-20
G10: ISO 5781-AG-10-2-A



Dimensions - top UNIT: mm(inch)
