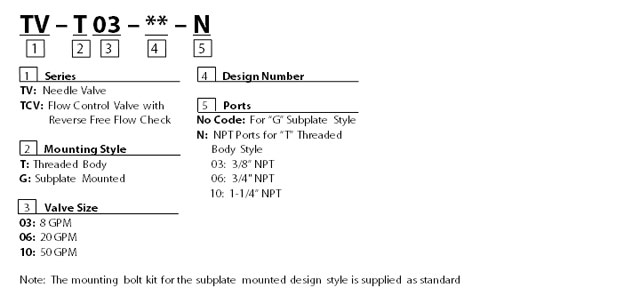

Model Code - top  |
Symbols - top
Specifications - top
| MODEL NUMBERS | MAX.OPERATED | RATED FLOW | WEIGHT KGS (LBS) | ||
| THREAD TYPE | SUBPLATE TYPE | PRESSURE BAR (PSI) | LPM (GPM) | ||
| TV-T03 | TV-G03 | 30 (8) | 1.4(3.1) | 1.5(3.1) | |
| TCV-T03 | TCV-G03 | 1.5(3.1) | 2.1(4.6) | ||
| TV-T06 | TV-G06 | 207 (3000) | 80 (20) | 2.6(5.7) | 2.7(6.0) |
| TCV-T06 | TCV-G06 | 3.5(7.7) | 4.0(8.8) | ||
| TV-T10 | TV-G10 | 200 (50) | 5.2(11.5) | 6.1(13.5) | |
| TCV-T10 | TCV-G10 | 7.4(16.3) | 8.1(17.8) | ||

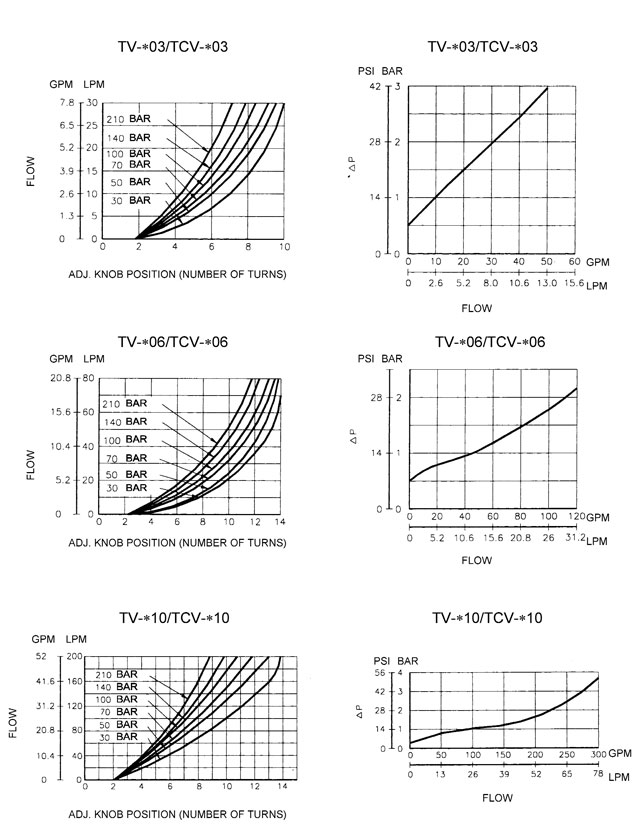

Performance Curves- top
PRESSURE DROP FOR REVERSED FREE FLOW
| Dimensions - top |

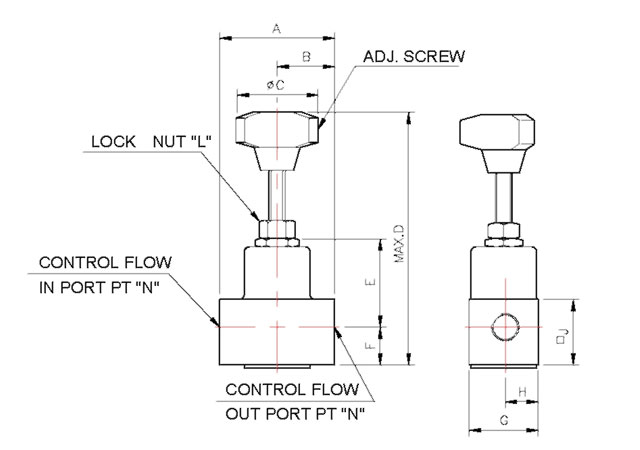

TV-T03/06/10-**
| UNIT : | mm(inch) |
| WEIGHT : | kgs(lbs) |
| T03 | 1.40(3.08) |
| T06 | 2.60(5.72) |
| T10 | 5.20(11.44) |
| MODEL | A | B | C | D | E | F | G | H | J | L | N |
| TV-T03 | 70 (2.76) | 35 (1.38) | 40 (1.57) | 143 (5.63) | 54 (2.13) | 23 (0.91) | 42 (1.65) | 20 (0.79) | 40 (1.57) | 19 (0.75) | M10 (3/8") |
| TV-T06 | 100 (3.94) | 50 (1.97) | 40 (1.57) | 136.5 (5.37) | 62 (2.44) | 30 (1.18) | 62 (2.44) | 30 (1.18) | 60 (2.36) | 19 (0.75) | M19 (3/4") |
| TV-T10 | 130 (5.12) | 65 (2.56) | 56 (2.20) | 173 (6.81) | 73 (2.87) | 40 (1.57) | 82 (3.23) | 40 (1.57) | 80 (3.15) | 22 (0.87) | M32 (1-1/4") |

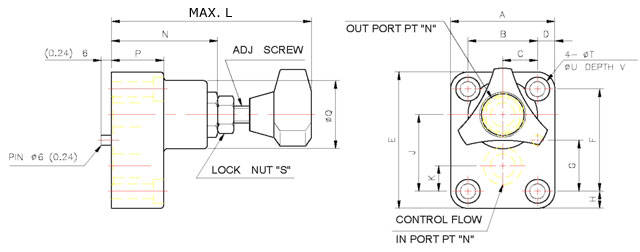

TV-G03/06/10-**
| WEIGHT: | kgs(lbs) |
| G03 | 1.50(3.30) |
| G06 | 2.70(5.94) |
| G10 | 6.10(13.42) |
| MODEL | A | B | C | D | E | F | G | H | J |
| TV-G03 | 60 (2.36) | 40 (1.57) | 20 (0.79) | 10 (0.39) | 80 (3.14) | 60 (2.36) | 30 (1.18) | 10 (0.39) | 45 (1.77) |
| TV-G06 | 80 (3.15) | 58 (2.28) | 29 (1.14) | 11 (0.43) | 92 (3.62) | 70 (2.76) | 35 (1.38) | 11 (0.43) | 54 (2.13) |
| TV-G10 | 100 (3.94) | 72 (2.83) | 36 (1.42) | 14 (0.55) | 120 (4.72) | 92 (3.62) | 46 (1.81) | 14 (0.55) | 71 (2.80) |
| MODEL | K | L | N | P | Q | S | T | U | V |
| TV-G03 | 15 (0.59) | 100 (3.94) | 65 (2.56) | 30 (1.18) | 44 (1.73) | 19 (0.75) | 9 (0.35) | 14 (0.55) | 8.6 (0.34) |
| TV-G06 | 16 (0.63) | 117.5 (4.63) | 73 (2.87) | 42 (1.65) | 41.5 (1.63) | 23 (0.90) | 11 (0.43) | 17.5 (0.69) | 10.8 (0.43) |
| TV-G10 | 21 (0.83) | 145 (5.71) | 100 (3.94) | 55 (2.17) | 56 (2.20) | 23 (0.90) | 13.5 (0.53) | 21 (0.83) | 1.0 (0.04) |
| Dimensions - top | UNIT: mm(inch) |

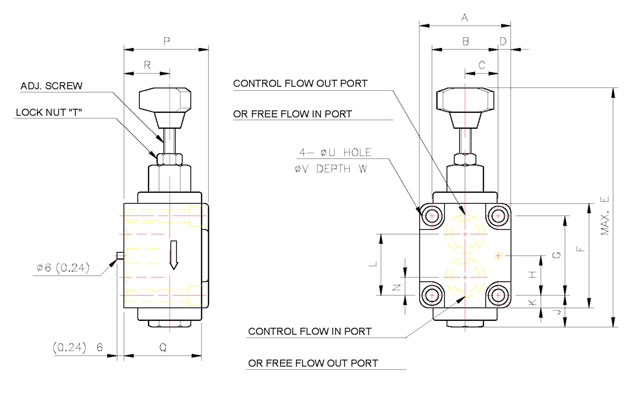

TCV-G03/06/10-**
| MODEL | A | B | C | D | E | F | G | H | J | |
| TCV-G03 | 60 (2.36) | 40 (1.57) | 20 (0.79) | 10 (0.39) | 179 (7.05) | 80 (3.14) | 60 (2.36) | 30 (1.18) | 28 (1.10) | |
| TCV-G06 | 80 (3.15) | 58 (2.28) | 29 (1.14) | 11 (0.43) | 213 (8.39) | 95 (3.74) | 70 (2.76) | 35 (1.38) | 30 (1.18) | |
| TCV-G10 | 100 (3.94) | 72 (2.83) | 36 (1.42) | 14 (0.55) | 228 (8.98) | 120 (4.72) | 92 (3.62) | 46 (1.81) | 31 (1.22) | |
| MODEL | K | L | N | P | Q | R | T | U | V | W |
| TCV-G03 | 10 (0.39) | 45 (1.77) | 15 (0.59) | 62 (2.44) | 55 (2.17) | 35 (1.38) | 19 (0.75) | 8.8 (0.35) | 14 (0.55) | 8.6 (0.34) |
| TCV-G06 | 11 (0.43) | 54 (2.13) | 16 (0.63) | 74 (2.91) | 68 (2.68) | 40 (1.57) | 19 (0.75) | 11 (0.43) | 17.5 (0.69) | 10.8 (0.43) |
| TCV-G10 | 14 (0.55) | 71 (2.80) | 21 (0.83) | 97 (3.82) | 82 (3.23) | 50 (1.97) | 22 (0.87) | 13.5 (0.53) | 21 (0.83) | 1 (0.04) |
| Dimensions - top | UNIT: mm(inch) |

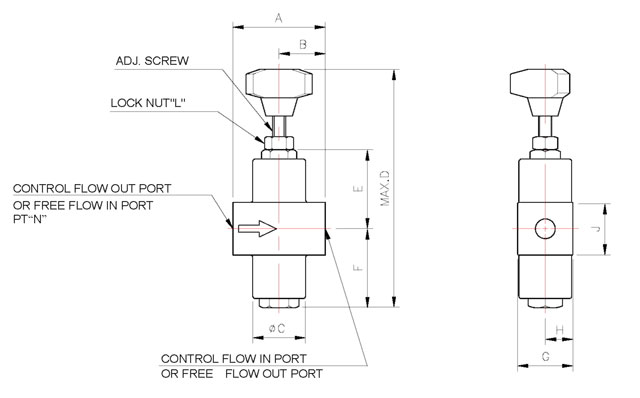

TCV-T03/06/10-**
| MODEL | A | B | C | D | E | F | G | H | J | L | N |
| TCV-T03 | 70 (2.76) | 35 (1.38) | 40 (1.57) | 180 (7.08) | 62.5 (2.46) | 58 (2.28) | 42 (1.65) | 21 (0.82) | 40 (1.57) | 19 (0.75) | M10 (3/8") |
| TCV-T06 | 100 (3.94) | 50 (1.97) | 60 (2.36) | 215 (8.46) | 83 (3.27) | 65 (2.56) | 62 (2.44) | 31 (1.22) | 60 (2.36) | 19 (0.75) | M19 (3/4") |
| TCV-T10 | 130 (5.12) | 65 (2.56) | 80 (3.15) | 228 (8.98) | 106 (4.17) | 77 (3.03) | 82 (3.23) | 41 (1.61) | 80 (3.15) | 22 (0.87) | M32 (1-1/4") |
| Dimensions - top | UNIT: mm(inch) |
TV/TCV-G03/06
| TV/TCV-G03: ISO 5781-AG-06-2-A | |||
| TV/TCV-G06: ISO 5781-AH-08-2-A | |||
| MODEL | A PORT | B PORT | |
| TV | - 03 | CONTROL FLOW | CONTROL FLOW |
| - 06 | IN PORT | OUT PORT | |
| TCV | - 03 | CONTROL FLOW | CONTROL FLOW |
| - 06 | IN PORT OR | OUT PORT OR | |
| FREE FLOW | FREE FLOW | ||
| OUT PORT | IN PORT | ||
| MODEL | C | D | E | F | G | H | J | K |
| TV/TCV-G03 | 90 (3.54) | 66.7(2.63) | 33.3(1.31) | 11.7(0.46) | 173(6.81) | 42.9(1.69) | 32(1.26) | 64(2.52) |
| TV/TCV-G06 | 102(4.02) | 79.4(3.13) | 39.7(1.56) | 11.3(0.44) | 203(7.99) | 60.3(2.37) | 36.5(1.44) | 79(3.11) |
| MODEL | L | M | ||||||
| TV/TCV-G03 | 31(1.22) | 31(1.22) | ||||||
| TV/TCV-G06 | 36(1.42) | 37(1.46) |
| Dimensions - top | UNIT: mm(inch) TV/TCV-G10: ISO 5781-AJ-10-2-A |

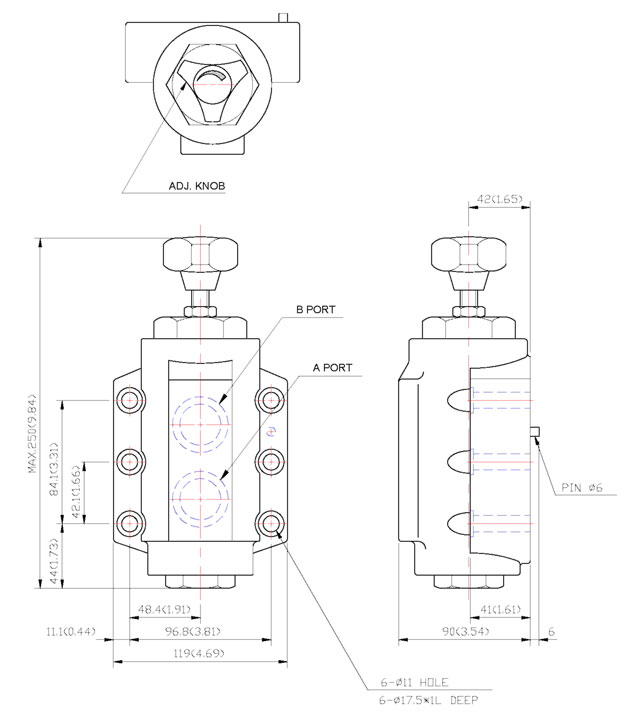

TV/TCV-G10
| MODEL | A PORT | B PORT |
| TV-G10 | CONTROL FLOW IN PORT | CONTROL FLOW OUT PORT |
| TCV-G10 | CONTROL FLOW IN PORT OR FREE FLOW OUT PORT | CONTROL FLOW OUT PORT OR FREE FLOW IN PORT |
