HD-G02
MANUALLY OPERATED DIRECTIONAL VALVE



This industrial hydraulic four-way valve is actuated manually with the hand-lever. It may be ordered as a 2-position or a 3-position valve. Other options include a spring-offset design, or spring-centered or detented.

The valve mounts on the M02 Subplate series.

Note: Modular pressure and flow control valves in the M**-02 series that mount under this directional control are available separately to make a convenient control valve package.














  Quick Links

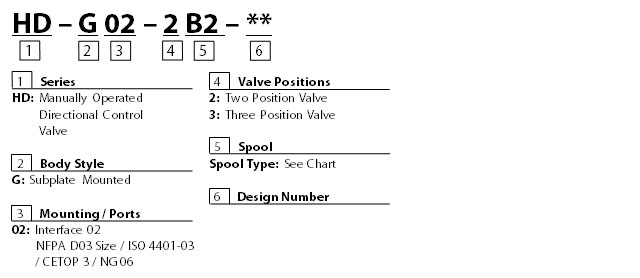

Model Code
Specifications
Dimensions



Model Code - top




SPECIFICATIONS - top


MODEL CODE MAX. FLOW MAX. PRESSURE
  LPM (GPM) BAR (PSI)
HD-G02-***-10 63(16.6) 207 (3000)


SPOOL TYPES - top


HD Series
Manually-Operated Directional Control Valves
Valve Type Spool Symbol
4 Way
3 Position
Spring Centered

3C2
3C3
3C4
3C6
4-Way
2-Position
Spring Offset
2B2
Closed
Crossover
2B3
Open
Crossover
4 Way
3 Position
Detent

3D2


3D3
3D4


3D6
4 Way
2 Position
Detent 		 2D2
Closed
Crossover
2D3
Open
Crossover

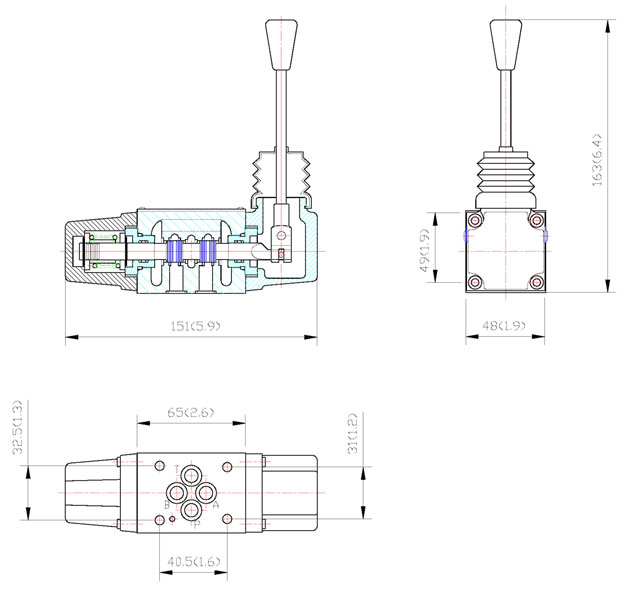

Dimensions - top UNIT: mm(inch) ISO 4401-AB-03-4-A

HD-G02-***-**
