HD-T03/T06 MANUALLY OPERATED DIRECTIONAL VALVE This industrial hydraulic four-way valve is actuated manually with the hand-lever. It may be ordered as a 2-position or a 3-position valve. Other options include a spring-offset design, or spring-centered or detented. The valve is available in two body sizes with ports either 3/8” NPT or 3/4” NPT.
	Quick Links Model Code Specifications Dimensions

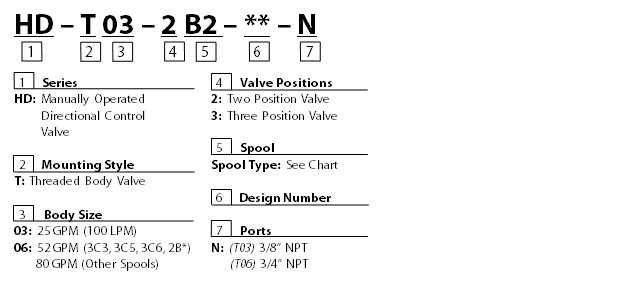

Model Code - top

SPECIFICATIONS - top

MODEL CODE	MAX. FLOW	MAX. PRESSURE
	LPM (GPM)	BAR (PSI)
HD-T03-*C*-10	100 (25)	207 (3000)
HD-T03-2D*-10	100 (25)	207 (3000)
HD-T03-2B*-10	100 (25)	207 (3000)
HD-T06-*C*-10	300 (80) / * 200 (52)	207 (3000)
HD-T06-2D*-10	300 (80)	207 (3000)
HD-T06-2B*-10	200 (52)	207 (3000)
* IS THE RATING FOR 3C3, 3C5, 3C6

SPOOL TYPES - top


HD Series
Manually-Operated Directional Control Valves

Valve Type	Spool	Symbol
4 Way 3 Position Spring Centered	3C2
	3C3
	3C4
	3C6
4-Way  2-Position  Spring Offset	2B2 Closed Crossover
	2B3 Open Crossover
4 Way 3 Position Detent	3D2
	3D3
	3D4
	3D6
4 Way 2 Position Detent	2D2 Closed Crossover
	2D3 Open Crossover

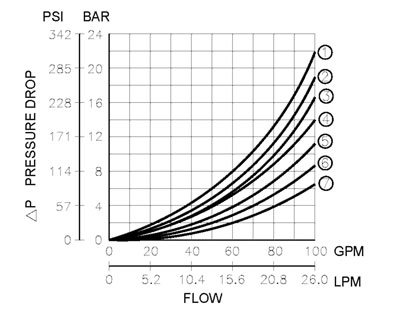

HD-T03 PRESSURE DROP CURVES - top

TEST FLUID VISCOSITY : 35 cSt (175 SSU) TEST TEMPERATURE: 50C(122F)

	HD-T03 PERFORMANCE CHART
	SPOOL PRESSURE   DROP LINE   NUMBER TYPE P-A  B-T P-B A-T P-T C2 4 5 4 5 - C3 6 6 6 6 6 C4 4 7 4 7 - C40 4 5 4 5 - C 5 6 5 4 6 2 C6 5 5 5 5 1 C60 5 5 5 5 1

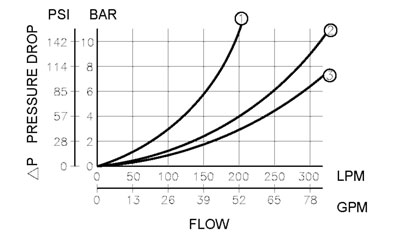

HD-T06 PRESSURE DROP CURVES TEST FLUID VISCOSITY : 35 cSt (175 SSU) TEST TEMPERATURE: 50C(122F)	HD-T06 PERFORMANCE CHART
	SPOOL PRESSURE   DROP LINE   NUMBER TYPE P-A  B-T P-B A-T P-T C2 2 2 2 2 - C3 3 2 3 2 2 C4 2 3 2 2 - C40 2 2 2 2 - C5 3 2 2 2 - C6 3 2 3 2 1 C60 3 2 3 2 1

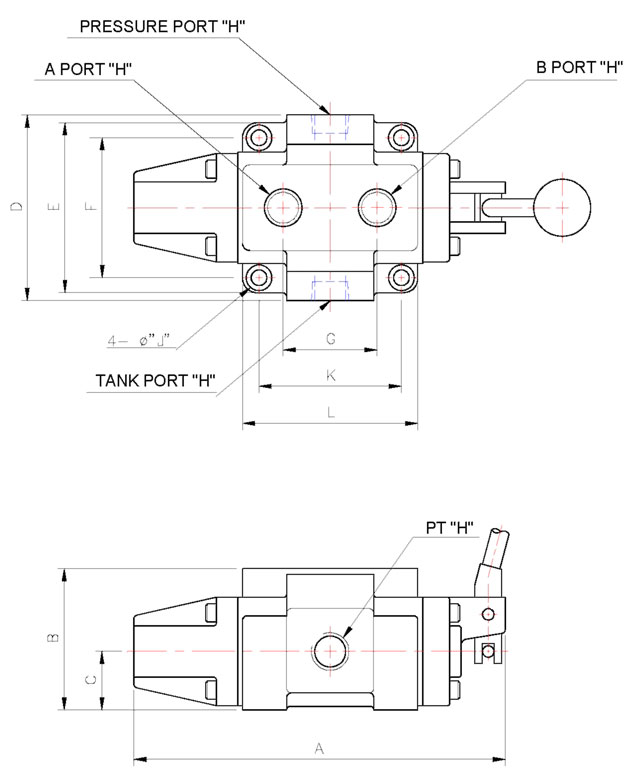

Dimensions - top

UNIT: mm(inch)

HD-T03/06

MODEL	A	B	C	D	E	F	G	H	J	K	L	WEIGHT
												KGS	LBS
HD-T03 SERIES	174 (6.85)	82 (3.23)	39 (1.53)	74 (2.91)	68 (2.68)	50 (1.96)	33 (1.30)	M10 (3/8")	68 (0.27)	58 (2.29)	92 (3.62)	4.0	8.9
HD-T06 SERIES	258 (10.16)	99 (3.90)	41 (1.61)	130 (5.12)	120 (4.72)	98 (3.86)	66 (2.60)	M19 (3/4")	11 (0.43)	100 (3.94)	125 (4.92)	11.5	25.8
