M03 Subplate


	SOLENOID OPERATED DIRECTIONAL VALVE M03 SUBPLATE This single-station subplate for mounting an industrial hydraulic directional control valve conforms to the National Fluid Power Association (NFPA) D05 mounting pattern. It accepts Northman valves in the SWH-G03 and HD-G03 Series. NPT and SAE Ports are available on the side or the bottom for Pressure, Tank, A and B connections.


	Quick Links Model Code Dimensions

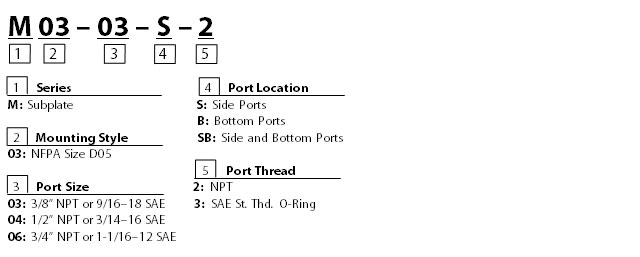

Model Code - top

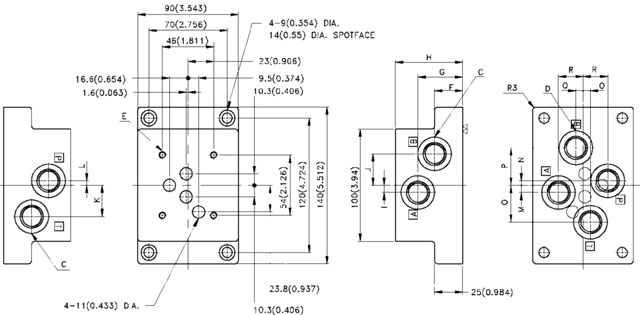

Dimensions - top M03 - ** - B - *

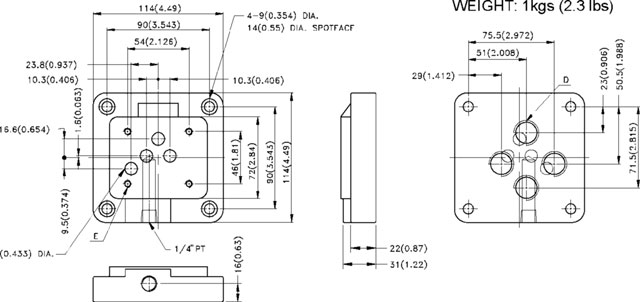

Dimensions - top M03 - ** - S/SB - *

Dimensions- top

MODEL			PORT SIZE & INSTALLATION DIMENSIONS
MODEL			C	D	E	F	G	H	I	J
M03-03	- S	-2	3/8"NPT	_-	1/4"-20UNC	25(0.98)	40(1.58)	60(2.36)	6.5(0.26)	28(1.10)
	- S	-3	9/16 - 18 SAE	_-	1/4"-20UNC	25(0.98)	40(1.58)	60(2.36)	6.5(0.26)	28(1.10)
	- B	-2	_-	3/8"NPT	1/4"-20UNC			_-	_-	_-
	- B	-3	_-	9/16 - 18 SAE	1/4"-20UNC			_-	_-	_-
	- SB	-2	3/8"NPT	3/8"NPT	1/4"-20UNC	25(0.98)	40(1.58)	60(2.36)	6.5(0.26)	28(1.10)
	- SB	-3	9/16 - 18 SAE	9/16 - 18 SAE	1/4"-20UNC	25(0.98)	40(1.58)	60(2.36)	6.5(0.26)	28(1.10)
MODEL			INSTALLATION DIMENSIONS
MODEL			K	L	M	N	O	P	Q	R
	S	-2	28(1.10)	4(0.16)	_-		_- _-	_-	_-	_-
	S	-3	28(1.10)	4(0.16)	_-		_- _-	_-	_-	_-
M03-03	- B	-2	_-	_-	6.5(0.26)		4(0.16) 33(1.30)	33.5(1.32)	6.5(0.26)	22(0.87)
	- B	-3	_-	_-	6.5(0.26)		4(0.16) 33(1.30)	33.5(1.32)	6.5(0.26)	22(0.87)
	- SB	-2	28(1.10)	4(0.16)	6.5(0.26)		4(0.16) 33(1.30)	33.5(1.32)	6.5(0.26)	22(0.87)
	- SB	-3	28(1.10)	4(0.16)	6.5(0.26)		4(0.16) 33(1.30)	33.5(1.32)	6.5(0.26)	22(0.87)

MODEL			PORT SIZE & INSTALLATION DIMENSIONS
MODEL			C	D	E	F	G	H	I	J
	- S	-2	1/2"NPT	_-	1/4"-20UNC	25(0.98)	40(1.58)	60(2.36)	6.5(0.26)	28(1.10)
	- S	-3	3/4 - 16 SAE	_-	1/4"-20UNC	25(0.98)	40(1.58)	60(2.36)	6.5(0.26)	28(1.10)
M03-04	- B	-2	_-	1/2"NPT	1/4"-20UNC			_-	_-	_-
	- B	-3	_-	3/4 - 16 SAE	1/4"-20UNC			_-	_-	_-
	- SB	-2	1/2"NPT	1/2"NPT	1/4"-20UNC	25(0.98)	40(1.58)	60(2.36)	6.5(0.26)	28(1.10)
	- SB	-3	3/4 - 16 SAE	3/4 - 16 SAE	1/4"-20UNC	25(0.98)	40(1.58)	60(2.36)	6.5(0.26)	28(1.10)
MODEL			INSTALLATION DIMENSIONS
MODEL			K	L	M	N	O	P	Q	R
	- S	-2	28(1.10)	4(0.16)	_-		_- _-	_-	_-	_-
		-3	28(1.10)	4(0.16)	_-		_- _-	_-	_-	_-
M03-04	- B	-2	_-	_-	6.5(0.26)	4(0.16)	33(1.30)	33.5(1.32)	6.5(0.26)	22(0.87)
		-3	_-	_-	6.5(0.26)	4(0.16)	33(1.30)	33.5(1.32)	6.5(0.26)	22(0.87)
	- SB	-2	28(1.10)	4(0.16)	6.5(0.26)	4(0.16)	33(1.30)	33.5(1.32)	6.5(0.26)	22(0.87)
		-3	28(1.10)	4(0.16)	6.5(0.26)	4(0.16)	33(1.30)	33.5(1.32)	6.5(0.26)	22(0.87)

MODEL			PORT SIZE & INSTALLATION DIMENSIONS
MODEL			C	D	E	F	G	H	I	J
	-S	-2	3/4"NPT	_-	1/4"-20UNC	25(0.98)	40(1.58)	60(2.36)	6.5(0.26)	28(1.10)
	-S	-3	1-1/16 - 12 SAE	_-	1/4"-20UNC	25(0.98)	40(1.58)	60(2.36)	6.5(0.26)	28(1.10)
M03-06	-B	-2	_-	3/4"NPT	1/4"-20UNC			_-	_-	_-
	-B	-3	_-	1-1/16 - 12 SAE	1/4"-20UNC			_-	_-	_-
	-SB	-2	3/4"NPT	3/4"NPT	1/4"-20UNC	25(0.98)	40(1.58)	60(2.36)	6.5(0.26)	28(1.10)
	-SB	-3	1-1/16 - 12 SAE	1-1/16 - 12 SAE	1/4"-20UNC	25(0.98)	40(1.58)	60(2.36)	6.5(0.26)	28(1.10)
MODEL			INSTALLATION DIMENSIONS
MODEL			K	L	M	N	O	P	Q	R
	-S	-2	28(1.10)	4(0.16)	_-		_- _-	_-	_-	_-
	-S	-3	28(1.10)	4(0.16)	_-		_- _-	_-	_-	_-
M03-06	-B	-2	_-	_-	6.5(0.26)	4(0.16)	33(1.30)	33.5(1.32)	6.5(0.26)	22(0.87)
	-B	-3	_-	_-	6.5(0.26)	4(0.16)	33(1.30)	33.5(1.32)	6.5(0.26)	22(0.87)
	-SB	-2	28(1.10)	4(0.16)	6.5(0.26)	4(0.16)	33(1.30)	33.5(1.32)	6.5(0.26)	22(0.87)
	-SB	-3	28(1.10)	4(0.16)	6.5(0.26)	4(0.16)	33(1.30)	33.5(1.32)	6.5(0.26)	22(0.87)
