MBK Modular Bolt Kits


	MODULAR BOLT KITS MBK SERIES The modular bolt kit consists of four each of threaded rods and cap nuts. The lengths are sized to mount from one to four Northman Fluid Power modular valves between a Northman directional control valve and a subplate or manifold.


	Quick Links Model Code Dimensions

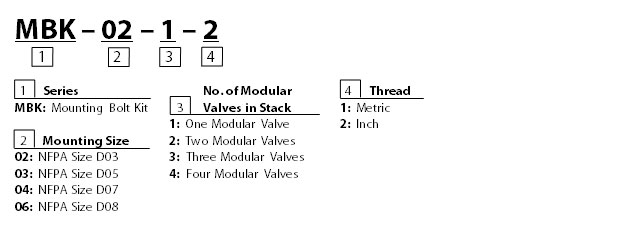

Model Code - top

Dimensions - top

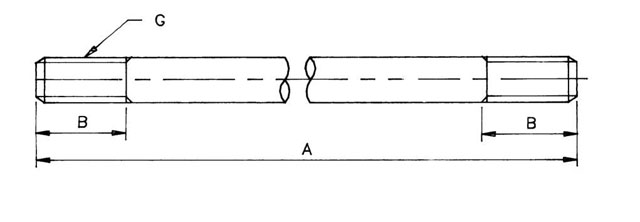

STAGE SIZE A (LENGTH)

1 02 94 (3.70)

03 102 (4.17)

2 02 134 (5.27)

03 157 (6.34)

3 02 174 (6.85)

03 212 (8.50)

4 02 214 (8.42)

03 267 (10.67)

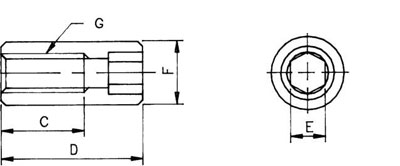

MODEL E F G B C D

MBK-02-*-1 4 (0.16) 8.5 (0.33) M5 x 0.8P 9 (0.35) 9 (0.35) 15 (0.59)

MBK-02-*-2 4 (0.16) 8.5 (0.33) #10-24UNC 9 (0.35) 9 (0.35) 15 (0.59)

MBK-03-*-1 5 (0.20) 10 (0.39) M6 x 1P 12 (0.47) 13 (0.47) 22 (0.87)

MBK-03-*-2 5 (0.20) 10 (0.39) 1/4-20UNC 12 (0.47) 13 (0.47) 22 (0.87)

Note: One (1) Bolt Kit consists of four (4) threaded rods and four (4) nuts

MODEL	E	F	G	B	C	D
MBK-02-*-1	4 (0.16)	8.5 (0.33)	M5 x 0.8P	9 (0.35)	9 (0.35)	15 (0.59)
MBK-02-*-2	4 (0.16)	8.5 (0.33)	#10-24UNC	9 (0.35)	9 (0.35)	15 (0.59)
MBK-03-*-1	5 (0.20)	10 (0.39)	M6 x 1P	12 (0.47)	13 (0.47)	22 (0.87)
MBK-03-*-2	5 (0.20)	10 (0.39)	1/4-20UNC	12 (0.47)	13 (0.47)	22 (0.87)

Note: One (1) Bolt Kit consists of four (4) threaded rods and four (4) nuts
