REMOTE CONTROLLED RELIEF VALVE RFG-01 SERIES This adjustable pressure relief valve is designed as a remote control valve for a pilot operated pressure control valve.
	Quick Links Model Code Specifications Dimensions

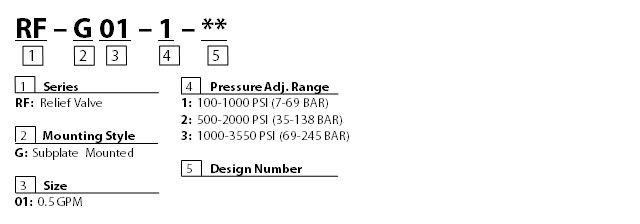

Model Code - top

Symbols - top




Specifications - top

MODEL	MAX. PRESSURE	PRESSURE ADJ. RANGE	RATE FLOW	MOUNTING BOLTS
	BAR (PSI)	BAR(PSI)	LPM(GPM)	MM(INCH)
RF-G01	245(3550)	1:7-69(100-1000)	2(0.5)	M5x40Lx4 PCS
		2:35-138(500-2000)		(#10-24UNC-1-1/2"x4 PCS)
		3:69-245(1000-3550)

Dimensions - top

UNIT: mm(inch) WEIGHT: 1.5 kgs(3.4 lbs)
