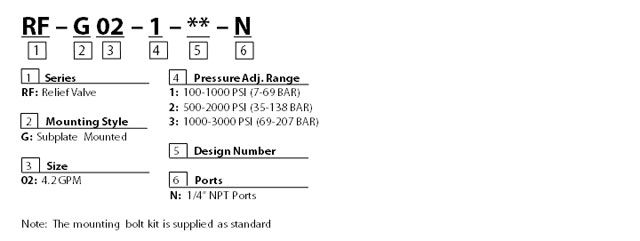

 Model Code - top  |
Symbols - top
Specifications - top
| MODEL | MAX. PRESSURE | PRESSURE ADJ. RANGE | RATE FLOW | MOUNTING BOLTS |
| BAR(PSI) | BAR(PSI) | LPM(GPM) | MM(INCH) | |
| 207(3000) | 1:7-69(100-1000) | 16(4.2) | M5x40Lx4 PCS (#10-24UNC-1-1/2"x4 PCS) | |
| RF-G02 | 2:35-138(500-2000) | |||
| 3:69-207(1000-3000) |
PERFORMANCE CURVES - top
TEST CONDITIONS
Viscosity: 35 cSt (175 SSU) Temperature: 50° C (122° F)

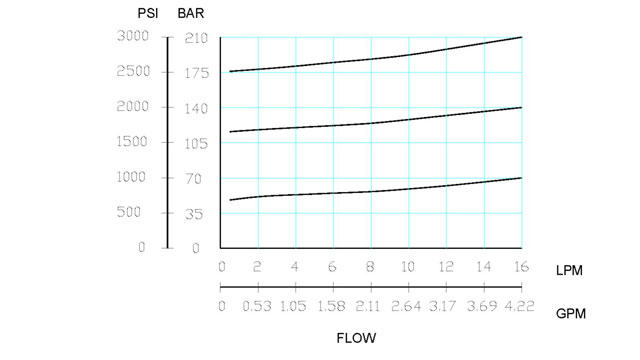

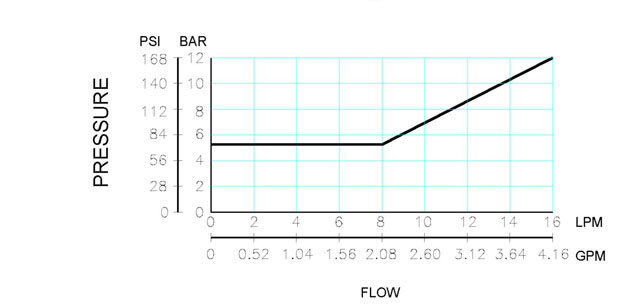

MIN. ADJ. PRESSURE
NOMINAL OVERRIDE
| Dimensions - top | UNIT: mm(inch) WEIGHT: 1.5 kgs(3.4 lbs) |

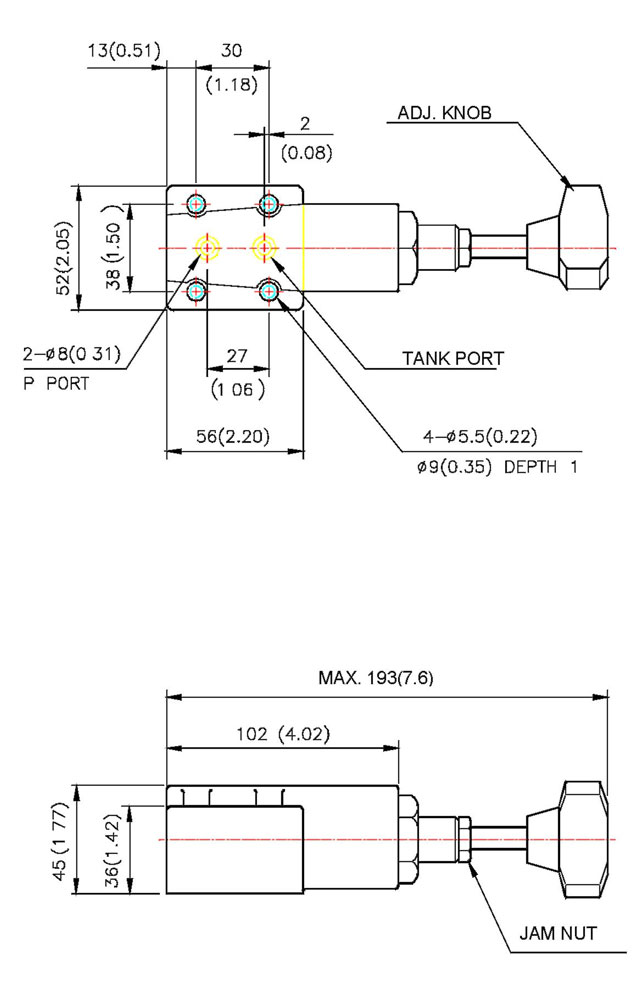

RFG-02
| Dimensions - top | UNIT: mm(inch) |

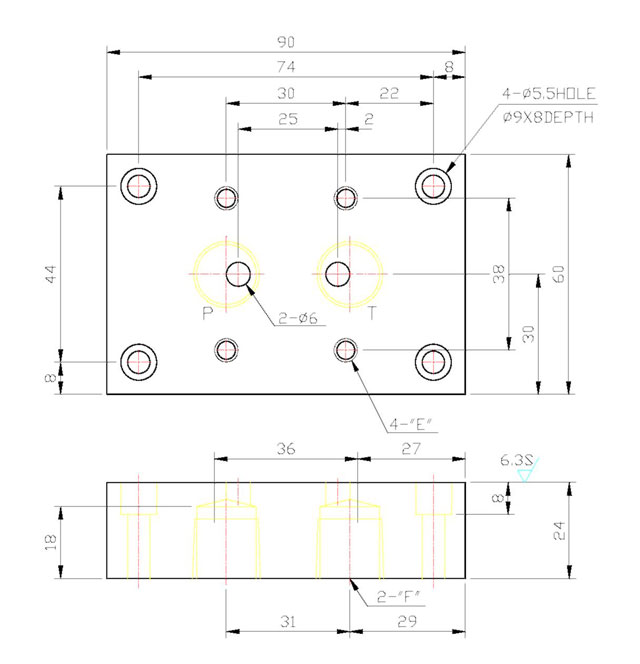

MF-02
Model Code - top
SUBPLATE FOR RF-G01 & RF-G02 SERIES
| HOW TO ORDER | E | F |
| MF-02-02-N | #10-24UNCx12L | NPT 1/4" |
