DIRECT TYPE RELIEF VALVE

RFG-02 SERIES

This adjustable pressure relief valve is a direct acting valve designed for applications requiring a valve of small maximum flow capacity.















  Quick Links

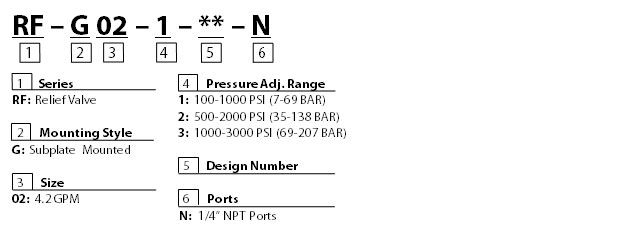

Model Code
Specifications
Dimensions



Model Code - top




Symbols - top




Specifications - top


MODEL MAX. PRESSURE PRESSURE ADJ. RANGE RATE FLOW MOUNTING BOLTS
BAR(PSI) BAR(PSI) LPM(GPM) MM(INCH)
  207(3000) 1:7-69(100-1000) 16(4.2) M5x40Lx4 PCS (#10-24UNC-1-1/2"x4 PCS)
RF-G02 2:35-138(500-2000)
  3:69-207(1000-3000)



PERFORMANCE CURVES - top

TEST CONDITIONS
 Viscosity: 35 cSt (175 SSU) Temperature: 50° C (122° F)

MIN. ADJ. PRESSURE



NOMINAL OVERRIDE




Dimensions - top UNIT: mm(inch) WEIGHT: 1.5 kgs(3.4 lbs)

RFG-02



Dimensions - top UNIT: mm(inch)


MF-02



Model Code - top

SUBPLATE FOR RF-G01 & RF-G02 SERIES

HOW TO ORDER E F
MF-02-02-N #10-24UNCx12L NPT 1/4"
