SOLENOID CONTROLLED  PILOT OPERATED RELIEF VALVE

FEATURES

• SRF-T/G valve is the combination of solenoid operated directional control valve and a RF-G relief valve in one integrated body to provide a wide variety of pressure control possibilities. Solenoid control permits convenient electrical selection of system pressures. Selection for pressure or vent, either of two pressures, or two pressures and vent, or one of three pressures can be achieved by proper selection of the valves listed below.
















  Quick Links

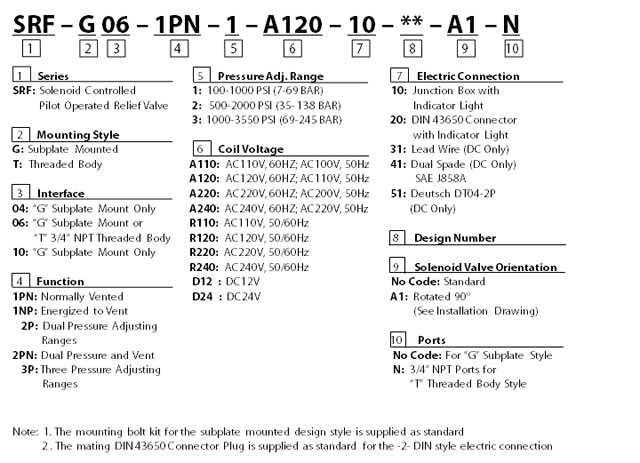

Model Code
Specifications
Dimensions




Model Code - top




SPECIFICATIONS - top


MODEL MAX. PRESSURE RATED FLOW PRESSURE ADJ. RANGE
BAR (PSI) LPM(GPM) BAR (PSI)
SRF-G04 245 (3550) 100(26.4) 1: 7-69 (100-1000)
SRF-G/T06 200(52.8) 2: 35-138(500-2000)
SRF-G10 400(105.6) 3: 69-245(1000-3550)

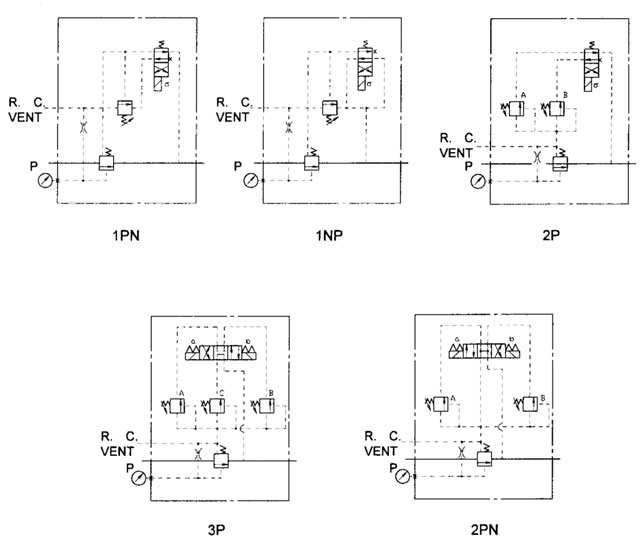

SYMBOLS & FUNCTION TABLES  - top




MODEL INPUT OUTPUT
SOL b       SOL a
1PN OFF  NONE VENTED
ON ADJUSTABLE PRESSURE
1NP NONE OFF ADJUSTABLE PRESSURE
 ON VENTED
2P OFF  NONE ADJUSTABLE PRESSURE AT A
ON ADJUSTABLE PRESSURE AT B
2PN OFF  OFF VENTED
ON  OFF ADJUSTABLE PRESSURE AT A
OFF  ON ADJUSTABLE PRESSURE AT B
3P  OFF  OFF ADJUSTABLE PRESSURE AT C
ON  OFF ADJUSTABLE PRESSURE AT A
OFF  ON ADJUSTABLE PRESSURE AT B






Dimensions - top UNIT: mm(inch)

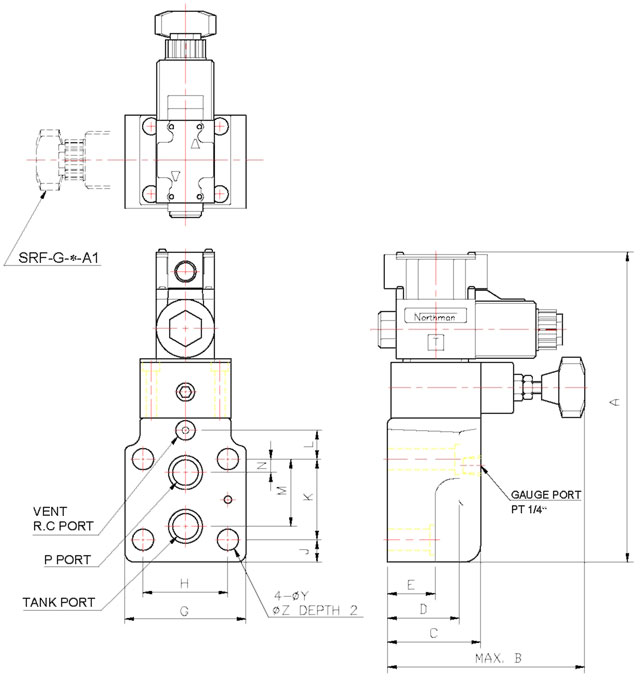

SRF-G*-1PN/1NP




MODEL A B C D E G H J K
SRF-G04 228.5 175 78 78 57 82 53.8 21.5 53.8
SERIES (9.00) (6.89) (3.07) (3.07) (0.67) (3.23) (2.12) (0.89) (2.12)
SRF-G06 254 175 78 60 40 102 70 19 66.7
SERIES (9.61) (6.85) (3.07) (2.36) (0.67) (4.09) (2.76) (0.67) (2.63)
SRF-G10 281 184 87.5 67 47 124 82.6 20 88.9
SERIES (11.06) (7.24) (3.45) (2.64) (0.71) (4.88) (3.25) (0.71) (3.5)
MODEL L M N Y Z WEIGHT SUBPLATE
KGS(LBS) TYPE
SRF-G04 0 47.5 22 13.5 21 7.5 KGS MF-04
SERIES (0) (2.13) (0.87) (0.53) (0.83) (16.5 LBS)
SRF-G06 23.8 55.5 11 17.5 26 8.0 KGS MF-06
SERIES (0.94) (2.19) (0.43) (0.69) (1.02) (17.6 LBS)
SRF-G10 31.8 76.2 12.7 22 32 25 KGS MF-10
SERIES (1.25) (3.00) (0.50) (0.85) (1.26) (55.1 LBS)


Dimensions - top UNIT: mm(inch)

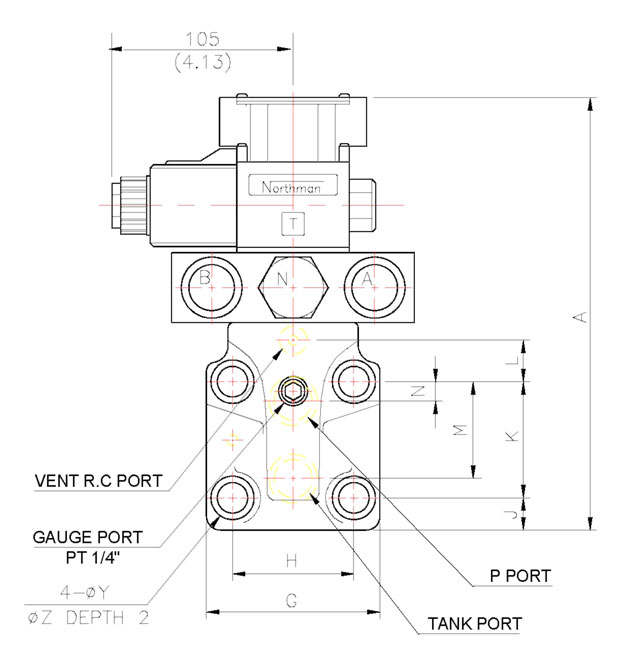

SRF-G06/G10-2P


MODEL A G H J K L M N Y Z WEIGHT SUBPLATE
KGS(LBS) TYPE
SRF-G06 SERIES 244 (9.61) 104 (4.09) 70 (2.76) 16.9 (0.67) 66.7 (2.63) 23.8 (0.94) 55.5 (2.19) 11 (0.43) 17.5 (0.69) 26 (1.02) 10 KGS (22.0LBS) MF-06
SRF-G10 SERIES 281 (11.06) 124 (4.88) 82.6 (3.25) 18 (0.71) 88.9 (3.5) 31.8 (1.25) 76.2 (3.00) 12.7 (0.50) 21.5 (0.85) 32 (1.26) 27 KGS (59.5LBS) MF-10


Dimensions - top UNIT: mm(inch)

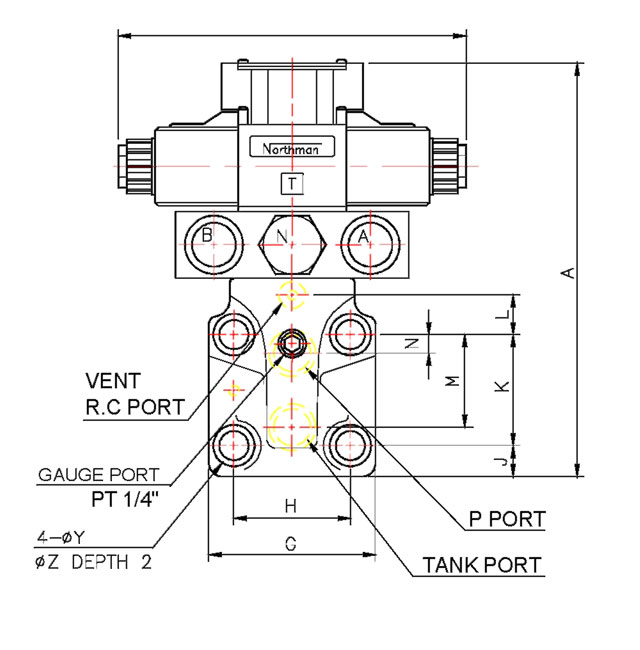

SRF-G06/G10-2PN

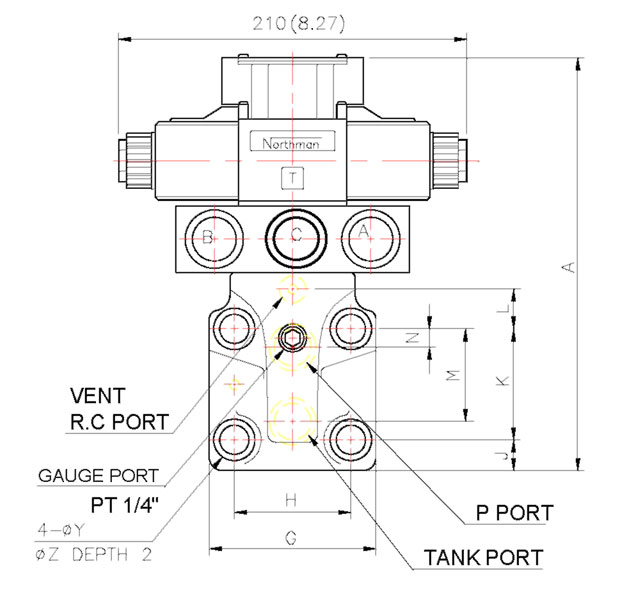

SRF-G06/G10-3P

MODEL A G H J K L M N Y Z WEIGHT SUBPLATE
KGS(LBS) TYPE
SRF-G06 SERIES 244 (9.61) 104 (4.09) 70 (2.76) 16.9 (0.67) 66.7 (2.63) 23.8 (0.94) 55.5 (2.19) 11 (0.43) 17.5 (0.69) 26 (1.02) 12 KGS (26.4LBS) MF-06
SRF-G10 SERIES 281 (11.06) 124 (4.88) 82.6 (3.25) 18 (0.71) 88.9 (3.5) 31.8 (1.25) 76.2 (3.00) 12.7 (0.50) 21.5 (0.85) 32 (1.26) 29 KGS (63.9LBS) MF-10

Dimensions - top UNIT: mm(inch) 8kgs(17.6lbs)

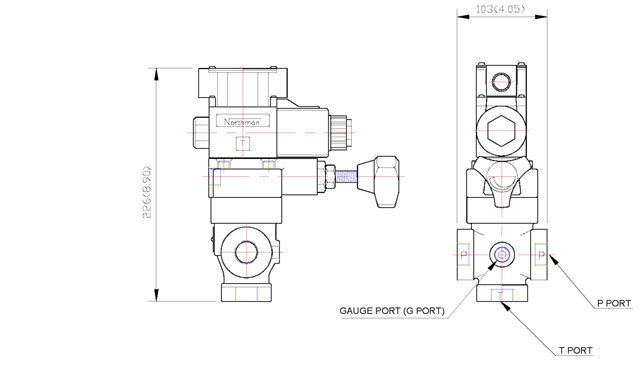

SRF-T06-1PN/1NP

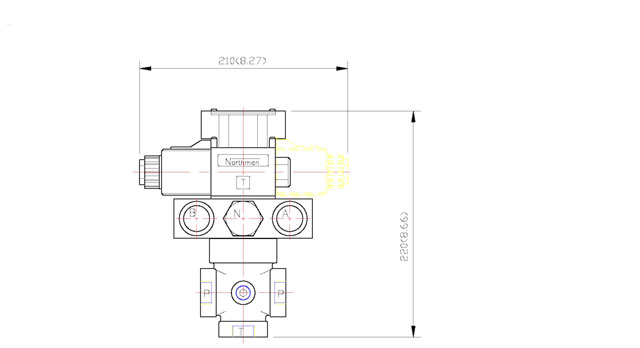

SRF-T06-2P/2PN/3P
