SOLENOID OPERATED DIRECTIONAL VALVE

SWH-G03 SHOCKLESS TYPE
FEATURES

• Indicating lights and bolt kits are standard.
• Coil screws are especially designed to prevent shocks.
• Electrical connections are joint box type or Hirschman DIN type plug-in connector.
• Joint box is waterproof and dust-resistance.
• The space for electrical connections is large enough for connection layout.
• Electrical connection points are aligned with the axial direction to be compatible with modular system.
• The valve mounting screws are on the outside of the body for ease of installation and repair.
• High pressure up to 310 BAR (4500 PSI), large flow rates up to 80 LPM (21 GPM).
• The ideal design of flow passages to minimize pressure drop.
• High back pressure up to 160 BAR (2350 PSI)
• Manufactured with specifications that allows for parts and accessories interchangeability.
• Specifically designed to control the shock or "bang" in hydraulic systems.
• Minimizes the effect of pressure peaks or instantaneous high flow rates common in many hydraulic systems.












  Quick Links

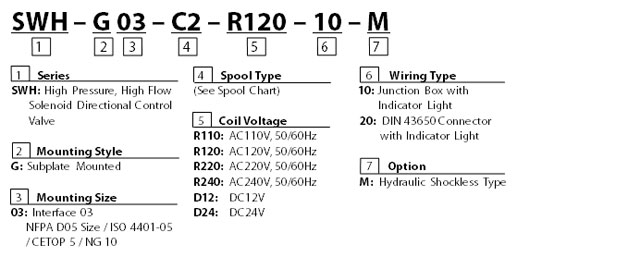

Model Code
Specifications
Dimensions



Model Code - top








Specifications - top


Maximum operating pressure 207 BAR (3000 PSI)
Rated flow capacity 80 LPM (21 GPM) MAX - Varies by spool type
Maximum tank line back pressure 160 BAR (2350 PSI)
Maximum frequencies of operation 240 CPM
Recommended filtration 25 MICRON
Hydraulic fluids Mineral Oil, Viscosity 10 - 400 cST
Temperature range -25° C to +90° C (-13° F to +194° F)


Solenoid Ratings - top


ELECTRIC SOURCE COIL TYPE VOLTAGE(V) CURRENT & POWER AT RATED VOLTAGE
SOURCE RATED  Hz RANGE (±10%) IN-RUSH CURRENT (A) HOLDING CURRENT (A) WATTAGE
RF R110 AC110V 50 99-126 0.47 0.47 46
  AC110V 60
R220 AC220V 60 198-253 0.24 0.24
    AC220V 50
DC D12 DC 12V   10.8-13.2 2.58 2.58 32
D24 DC 24V   21.6-26.4 1.33 1.33


TECHNICAL DATA: - top

• Solenoid can be used within - 10% to + 10% of the rated voltage of the coil.
• Withstand voltage 1500 v/sec.
• Insulation resistance over 100MQ.

ACCESSORIES: - top

• Mounting bolt kits are supplied with valve socket head cap screws M6x35L 4 pcs (1/4"-20UNCx1-3/8" 4 pcs) for tightening torque 120-150 kgf-cm (104-130 lbs-in).
• O-Ring AS568-014 5 pcs.


PRESSURE DROP AND PERFORMANCE CURVES  - top

TEST SYSTEMS

1. Testing Valve
2. Pump
3. Pressure Sensor
4. Flow Sensor
5. Relief Valve
6. Throttle Valve

TEST CONDITIONS
Pressure: 69 BAR (1000PSI)
Flow Rate: 80 LPM(21 GPM)
Viscosity: 35 cSt (175SSU)

TEST CIRCUIT


PERFORMANCE CURVES


CONTRAST CHART BETWEEN FACTORS AND VISCOSITIES
VISCOSITY cSt 15 20 30 40 50 60 70 80 90 100
SSU 77 98 141 186 232 278 324 371 417 464
FACTOR (G) 0.81 0.87 0.96 1.03 1.09 1.14 1.19 1.23 1.27 1.30

The pressure drop (AP') can be obtained from the formula
AP'=AP (G'/0.85) for other specific gravity (G').
SPOOL Pressure Drop Curve Number
TYPE P-A B-T P-B A-T P-T
C2 1 1 1 1 -
C3 5 5 5 5 2
C4 1 1 1 1 -
C6 4 4 4 4 3
B2 2 2 2 2 -
B3 2 2 2 2 -

RESULTS OF MEASUREMENTS

TEST SYSTEMS

1. Testing Valve
2. Pump
3. Pressure Sensor
4. Flow Sensor
5. Relief Valve
6. Throttle Valve

TEST CONDITIONS
Pressure: 138 BAR (2000PSI)
Flow Rate: 30 LPM(8 GPM)
Viscosity: 35 cSt(175 SSU)

TEST CIRCUIT



MODEL CHANGE OVER TIME(SEC.)
T1  T2
SWH-G03-RF-M SERIES 0.1-0.15  0.1-0.15
SWH-G03-DC-M SERIES 0.1-0.15  0.1-0.15



List of Spool Functions - top
  THE MAXIMUM FLOW RATE LPM(GPM) UNDER DIFFERENT PRESSURE BAR (PSI)
SPOOL TYPE NORMAL POSITION
  50 BAR (735 PSI) 100 BAR (1470 PSI) 150 BAR (2200 PSI) 207 BAR (3000 PSI) 50 BAR (735 PSI) 100 BAR (1470 PSI) 150 BAR (2200 PSI) 207 BAR (3000 PSI) 50 BAR (735 PSI) 100 BAR (1470 PSI) 150 BAR (2200 PSI) 207 BAR (3000 PSI)
C2 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 67 (18.0) 80 (21.5) 80 (21.5) 80 (21.5) 67 (18.0)
C3 80 (21.5) 80 (21.5) 80 (21.5) 67 (18.0) 80 (21.5) 50 (13.5) 32 (8.5) 28 (7.5) 80 (21.5) 50 (13.5) 32 (8.5) 28 (7.5)
C4 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5)
C6 80 (21.5) 30 (8) 28 (7.5) 20 (5.4) 80 (21.5) 35 (9.4) 30 (8) 20 (5.4) 80 (21.5) 35 (9.4) 30 (8) 20 (5.4)
B2 80 (21.5) 80 (21.5) 80 (21.5) 28 (7.5) 70 (18.5) 70 (18.5) 70 (18.5) 70 (18.5) 70 (18.5) 70 (18.5) 70 (18.5) 70 (18.5)
B3 80 (21.5) 80 (21.5) 80 (21.5) 28 (7.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5) 80 (21.5)



Dimensions - top

SWH - G03 - *** - **** - 10 - **
with DC/RF solenoids
MOUNTING SURFACE: ISO 4401-AB-03-4-A
UNIT: mm( inch)

MODEL WEIGHT KGS (LBS)
SWH-G03-C**-D** 5.5(12.1)
SWH-G03-C**-R***
SWH-G03-B**-D** 4(9.68)
SWH-G03-B**-R***


Dimensions - top

SWH - G03 - *** - **** - 20 - **
with DC,RF solenoids
MOUNTING SURFACE: ISO 4401-AB-03-4-A
UNIT: mm( inch)

MODEL WEIGHT KGS (LBS)
SWH-G03-C**-D ** 5.5(12.1)
SWH-G03-C**-R ***
SWH-G03-B**-D ** 4(9.68)
SWH-G03-B**-R ***
