V10


Single Fixed Displacement

V10

The Northman V10 Series pump is a fixed displacement, balanced vane pump. Available flow ratings are from 1 GPM to 7 GPM. Standard rotation is right-hand (clockwise), with left-hand rotation (counterclockwise) available ("L" option). The flange mounting is the SAE "A" two-bolt standard.











  Quick Links
Model Code




Symbol

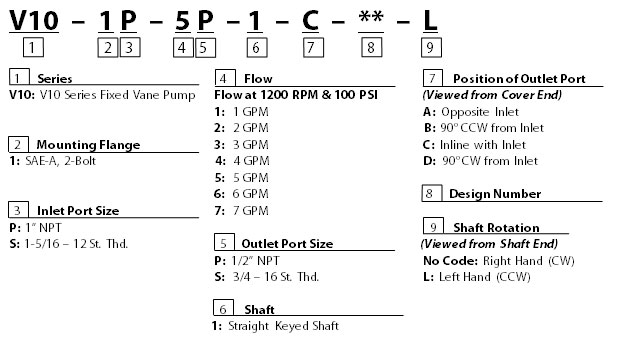

Model Code -
top

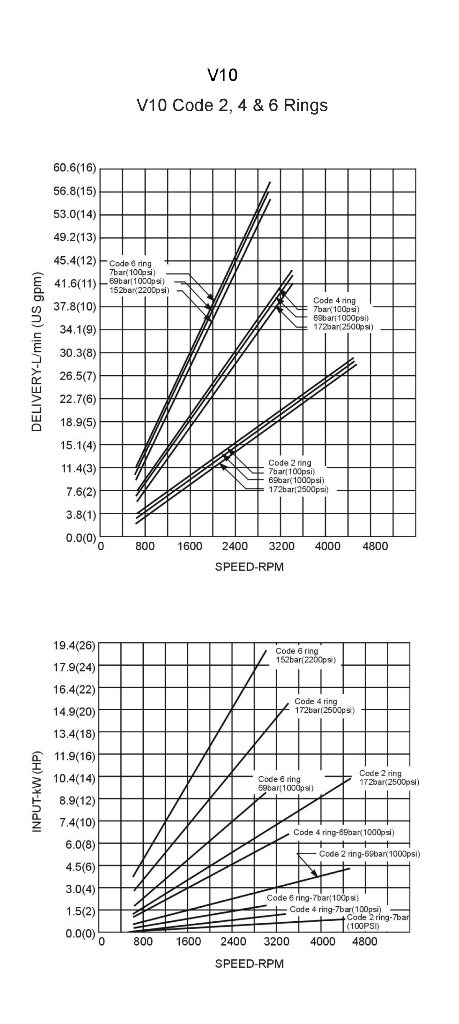

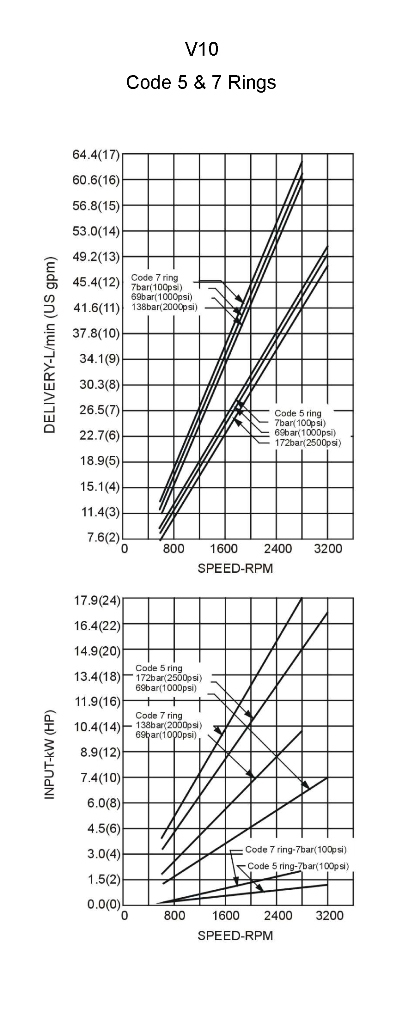

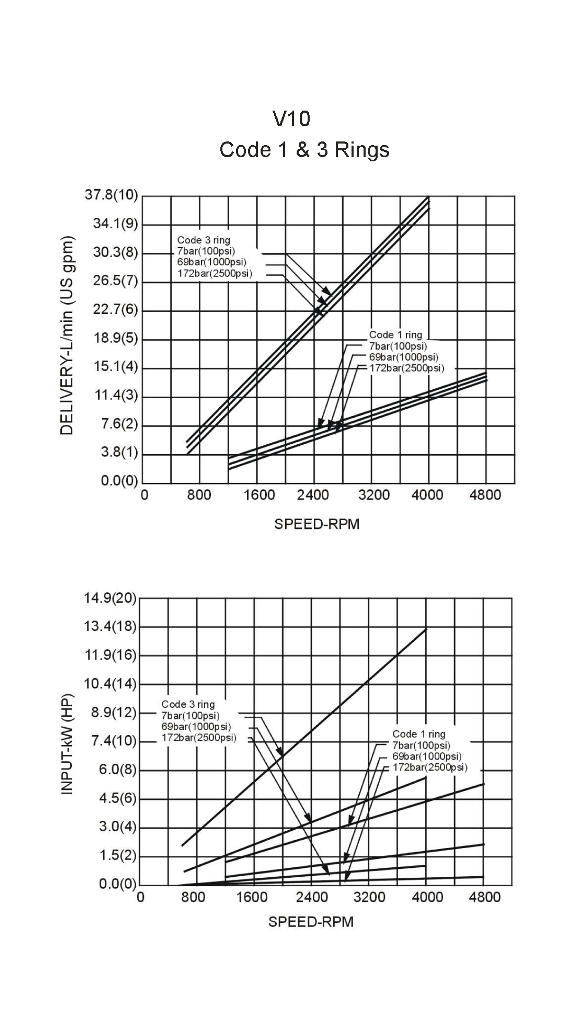

Performance Curves - top


V10 Single Pump
Based on Petroleum Oil: 120°F (49°C), Viscosity 150 SUS at 100°F (38°C), 0 Inlet PSI



Specifications - top




Based on Petroleum Oil: 120°F (49°C), Viscosity 150 SUS at 100°F (38°C), 0 Inlet PSI

Model
Flow Code
GPM @ 1200 RPM
& 100 PSI
Displacement
in³/r (cm³/r)
Max. Speed
RPM
Max. Pressure
PSI (BAR)

V10

1

.20 (3.3)

4800

2500 (172)

2

.40 (6.6)

4500

3

.60 (9.8)

4000

4

.80 (13.1)

3400

5

1.00 (16.4)

3200

6

1.19 (19.5)

3000

2200(152)

7

1.39 (22.8)

2800

2000 (138)

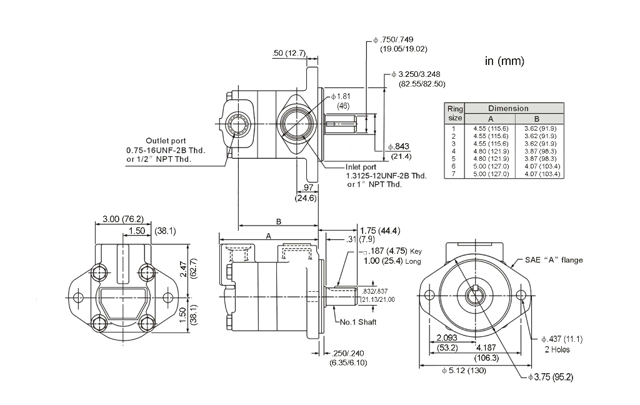

Dimensions - top

V10 Single Pump
Dimensions in Inches
