MODULAR  CHECK VALVE

MC-02 SERIES

The modular check valve will allow free flow in one direction and block flow in the opposite direction. It may be specified to operate on the P, T, A, or B port with a 7 PSI or 50 PSI cracking pressure.

As a modular valve, this valve mounts between an NFPA D03 size directional control valve and the subplate. A longer than standard bolt kit is required when mounting modular valves in a stack. Refer to bolt kits.












  Quick Links

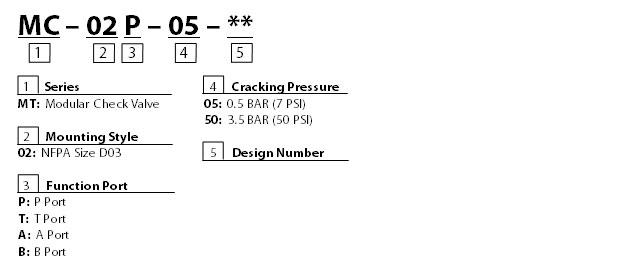

Model Code
Specifications
Dimensions



Model Code - top

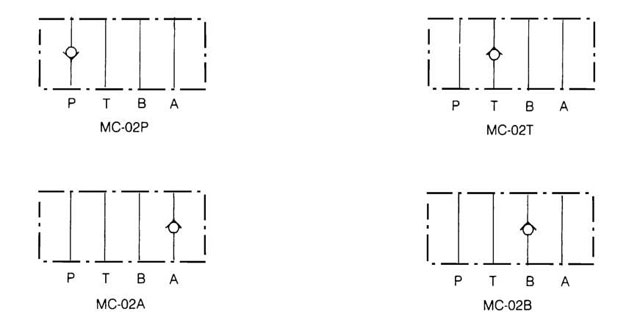

Symbols - top






Features - top


Max. operating pressure 250 BAR (3675 PSI)
Max. flow capacity 35 LPM (9.3 GPM)

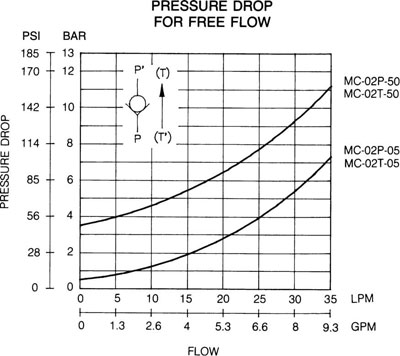

Performance Curves- top

TEST CONDITIONS
Viscosity: 35 cSt (175 SSU) Temperature: 50° C (122° F)








Dimensions - top UNIT: mm(inch) WEIGHT: 1.5 kgs(3.3 lbs) Mounting Surface: ISO 4401-AB-03-4-A

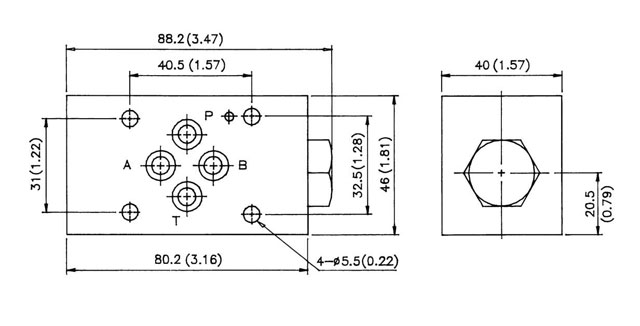

MC-02P- ** -40



Dimensions - top UNIT: mm(inch) WEIGHT: 1.5 kgs(3.3 lbs) Mounting Surface: ISO 4401-AB-03-4-A

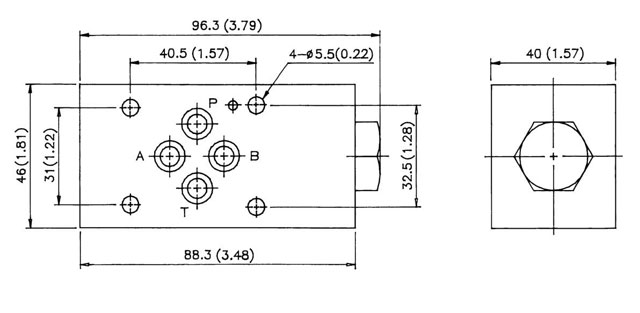

MT-02T- ** -40



Dimensions - top UNIT: mm(inch) WEIGHT: 1.5 kgs(3.3 lbs) Mounting Surface: ISO 4401-AB-03-4-A

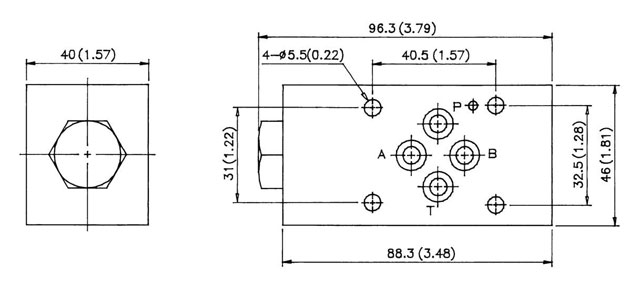

MT-02A- ** -40



Dimensions - top UNIT: mm(inch) WEIGHT: 1.5 kgs(3.3 lbs) Mounting Surface: ISO 4401-AB-03-4-A

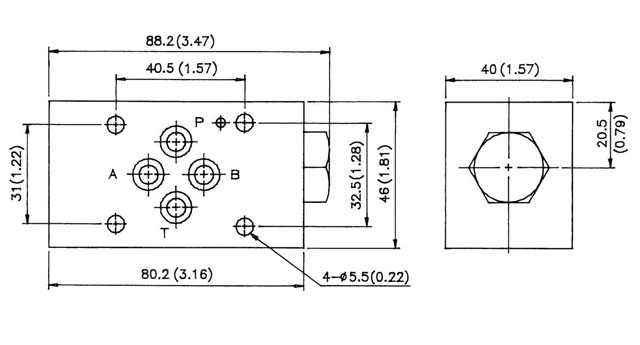

MT-02B- ** -40
