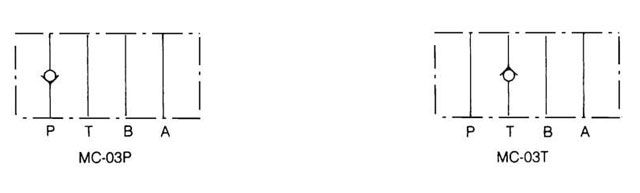

MODULAR CHECK VALVE MC-03 SERIES The modular check valve will allow free flow in one direction and block flow in the opposite direction. It may be specified to operate on the P, T, A, or B port with a 7 PSI or 50 PSI cracking pressure. As a modular valve, this valve mounts between an NFPA D05 size directional control valve and the subplate. A longer than standard bolt kit is required when mounting modular valves in a stack. Refer to bolt kits. |
||
 |
 |
 |
 |
|
 |
||
 |
 |
 |
 |
|
|
Quick Links

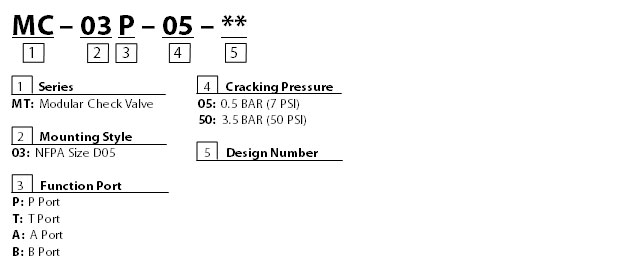

Model Code Specifications Dimensions |
||
 |
 |
