MODULAR RELIEF VALVE MPR-06 SERIES The modular adjustable pressure reducing valve will ensure that the operating pressure in a branch of a hydraulic system will be maintained at a lower setting than that of the main system pressure. The valve functions on the P port and is internally drained. Adjustment is made with a calibrated knob, standard with the valve. As a modular valve, this valve mounts between an NFPA D08 size directional control valve and the subplate. A longer than standard bolt kit is required when mounting modular valves in a stack. Refer to bolt kits. |
||
 |
 |
 |
 |
|
 |
||
 |
 |
 |
 |
|
|
Quick Links

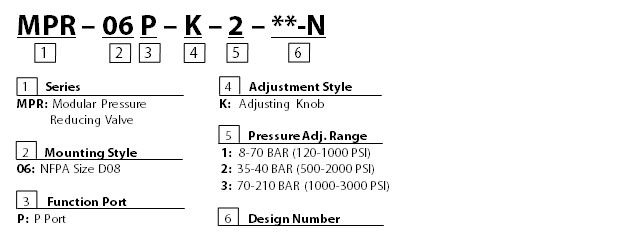

Model Code |
||
 |
 |
