MODULAR THROTTLE AND CHECK VALVE
MT-02 SERIES
The modular adjustable flow
control valve functions as a needle valve flow restrictor in one
direction
in a
branch of a circuit, with free flow in the opposite

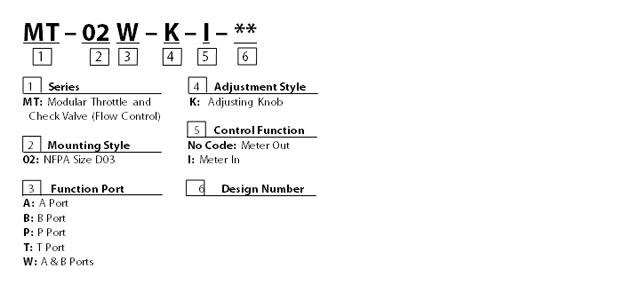

direction. It may be specified to operate on the A, B, or A & B
ports in either a “meter-in” or “meter-out” configuration.
Adjustment is made with a calibrated knob, standard with the
valve.
As a modular valve, this valve mounts between an NFPA D03 size
directional control valve and the subplate. A longer than
standard bolt kit is required when mounting modular valves in a
stack. Refer to bolt kits. |
|
 |
|
 |
|
|
